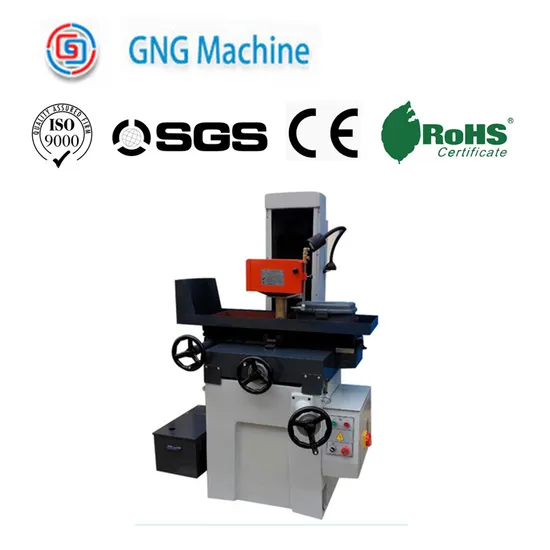

Manual Surface Grinder Milling Machine

US$2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.

M1022

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Max. Grinding Length

560mm

Max. Grinding Width

250mm

Distance From Table Surface to Spind

490mm

Maximum Work Load

250kg

Spindle Motor

1.5kw

Transport Package

Carton or Wood Case

Specification

CE ISO

Trademark

GNG MACHINE

Origin

China

HS Code

84571010

Production Capacity

1000 Sets/Month

Product Description

Characteristics of machine tools:
Spindle adopts ultra precision P4 ball bearing, after measuring pre strict pressure, assembled in the greenhouse, and equipped with a completely waterproof mazy design , in order to ensure the service life and the grinding of bearing surface roughness .Which marching with ball screw.
It has the advantages of compact structure, easy to operate.
A longitudinal guide rail worktable adopts rolling guide, rope wheel traction, light and flexible.

Technical Parameters			Unit	M1022
Table maximum cutting area (L × W×H) (××)			mm	560×250×490
Working table movement		Max. Grinding Length	mm	560
		Max. Grinding width	mm	250
Distance From Table Surface To Spindle Center			mm	490
Slide way				V-type Double rail with Steel-ball V
Maximum work load			Kg	250
Table size			mm	500×250
Number of T -Slot T			mm×n	14×1
Table speed			m/min	3 23
Front and rear wheel feed			mm	0.02/Graduation2.5/revolution 0.02/ 4/
On the hand wheel feed			mm	0.01/Graduation1.25/revolution 0.01/ 2/
Wheel Size(dia×width×bore) (×× )			mm	200×20×31.75
Spindle speed	50Hz		rpm	2850
	Variable frequency motor (matching) ()			0-6000
Spindle motor			Kw	1.5
Cooling pump			Kw	0.4
Packing Size (L×W×H) (××)			mm	1280×1250×1880
Cross,Net ,			T	1.1, 1.0
