Portable Particle Counter

Product Details

Product Description

Product Description

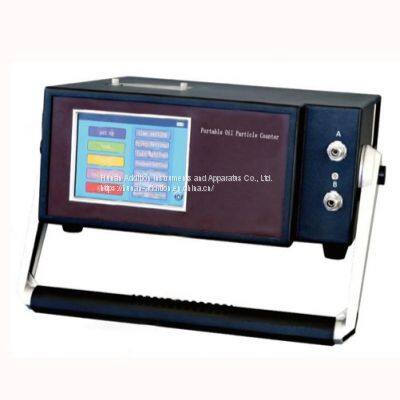

Portable Particle Counter
Product Model: JF0868
Instrument Introduction
According to national and international standards, instruments specially used for the detection of pollution levels in oil are developed. Suitable for hydraulic oil, lubricating oil, rock shale oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, phosphate ester oil and other oils for on-site, Laboratory contamination testing. It can also be installed on various hydraulic transmissions, oil filters, washing machines, inspection test benches and other systems to realize online inspection of system oil cleanliness. It can be widely used in aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.
Technical Parameter
1. Applicable standards: ISO4406 SH/T0868, GJB-420A, GJB-420B, NAS1638
2. Light source: semiconductor laser
3. Particle size range: 0.8-500um (depending on different sensors)
4. Detection channel: 8 channels, the particle size can be set arbitrarily
5. Sampling volume: 0.2-1000ml
6. Sampling accuracy: better than ±1%
7. Counting accuracy: ±10%
8. Resolution: ≤10%
9. Repeatability: RSD<2%
10. Limit coincidence error: 12000-40000 grains/mL
11. Online pressure range: low pressure 0-6bar, high pressure 5-420bar (optional pressure reducing valve)
12. Viscosity range: ≤350cSt
13. Power supply: AC100-240V, 50/60Hz
14. Battery capacity: 5200mAh
15. Running time: 6-8 hours
16. Dimensions: 310×305×135mm
17. Instrument weight: 7.5kg
Main Feature
1. The test principle of the photoresist (shading) method required by the International Hydraulic Standards Committee
2. High-precision laser sensor, wide test range, stable performance, low noise and high resolution
3. High-precision metering pump sampling method, adjustable sampling speed, high sampling volume accuracy
4. The pipeline is made of 316L and PTFE material, which can meet the detection of various organic solvents and oil products
5. It is used for laboratory or on-site measurement, and a built-in decompression device can be used for online high-pressure measurement
6. The external pressure chamber can be connected to form positive/negative pressure to realize the detection of high viscosity samples and sample degassing
7. Various sampling containers such as standard sampling bottles and sampling cups can be used, or directly connected to the hydraulic system
8. Built-in multiple calibration curves, compatible with all common domestic and foreign standards for calibration
9. Built-in GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E and [OC]17216 and other commonly used standards, support custom standard testing, and can set the required standards according to customer needs
10. 1000 particle size channels can be set, which is convenient for particle size analysis
11. Built-in data analysis system, automatically determine the sample grade according to the standard, automatic data processing, printing function
12. Color touch screen operation, Chinese and English dual interface, with preset, input, modification, storage functions, convenient and fast operation
13. With RS232 interface, it can be connected to a computer or laboratory platform for data processing, and can also use USB for data storage
14. Built-in lithium battery, can be used without external power supply

---
