Milling Drilling Functions Tck56y Horizontal 3 Axis Slant Bed CNC Turning Center

Product Description

Milling Drilling Functions Tck56y Horizontal 3 Axis Slant Bed CNC Turning Center

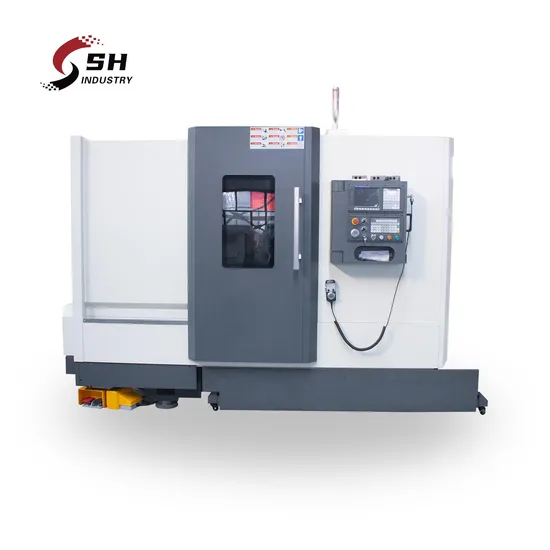

Realistic photos
Product features: Highest accuracy Taiwan linear guide ways Higher speed spindle unit ,optional homemade spindle Higher rigidity cast iron Integrated automatic lubrication One-piece casting slant bed cnc lathe Application : The machine is suitable for automobile, motorcycle, electronics, aerospace,oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient. Product Parameters

SPECIFICATIONS	SPECIFICATIONS	Units	TCK56Y	TCK56Y-BMT55
	Swing over bed	mm	560	600
	Max.processing length	mm	420	500
	Max.processing diameter	mm	310	460
	Spindle nose type	-	A2-6	A2-6
	Spindle bore	mm	65	65
	Spindle speed steps		stepless	stepless
	Spindle speed range	rpm	50-4500	50-4500
	X axis travel	mm	200	280
	Y axis travel	mm	±30	±50
	Z axis travel	mm	500	500
	Main spindle motor	kw	30	30
	X/Y/Z axis rapid traverse	M/min	30/12/30	30/12/30
	Turret type	-	12 station power turret	12 station power turret
	Machine weight	kg	3600	4500

Main technical specifications: Detailed Photos

---
