Factory Price Adl200 DIN Rail RS485 AC Single Phase Digital Energy Meter for Telecom Base Stations and AC Charging Piles

Product Description

Product Description

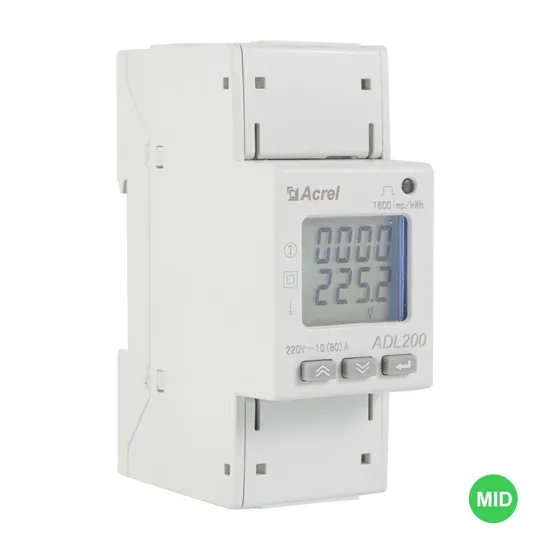

ADL200 Single Phase Din Rail Bidirectional Energy Meter
General
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features

	Diverse Electricity Parameters Measurement U (Voltage) I (Current) P (Power) Q (Reactive power) S (Apparent power) PF (Power factor) kWh (Kilowatt-hours) kVarh (Kilovar-hours)
Multi-rate/Flexible Tariff 4 Time zone 4 Tariff rate (Spike, Peak, Flat, Valley) 2 Time period list 14 Time period by day
	HMI for Parameters Setting Code Protocol Address Baud rate Parity All Display

Technical Parameters

Technical Parameter		ADL10-E	ADL100-ET	ADL100-ET/CT	ADL200
Accuracy class		1class
Rated voltage		220V
Current specification		10(60)A		20(100)A	10(80)A
Reference frequency		50Hz
Starting current	Direct connecting	0.004lb
Power consumption	Voltage line	<10VA
	Current line	<4VA
Electricity pulse output		80ms±20ms
Clock error		≤0.5s/D
Temperature range		Normal working temperature:-25~55ºC storage temperature:-40~70ºC
Relative humidity		≤95%(No condensation)
Outline (L*W*H)		18*88*70	36*88*70
Installation method		TS35mm guide rail
Communication		RS485 Modbus-RTU	RS485 Modbus-RTU, Infrared		RS485 Modbus-RTU

Dimension
Wiring
Wiring Sample of current and Voltage
Typical connection

---
