Nc Copper Iron Aluminum Stainless Steel etc Metal Tube Hydraulic Automatic Pipe Shrinking, Expanding, Reducing, Flaring, Crimping, Beading, End Forming Machine

Product Description

Product Description

NC Copper Iron Aluminum Stainless Steel Etc Metal Tube Hydraulic Automatic Pipe Shrinking, Expanding, Reducing, Flaring, Crimping, Beading, End Forming Machine

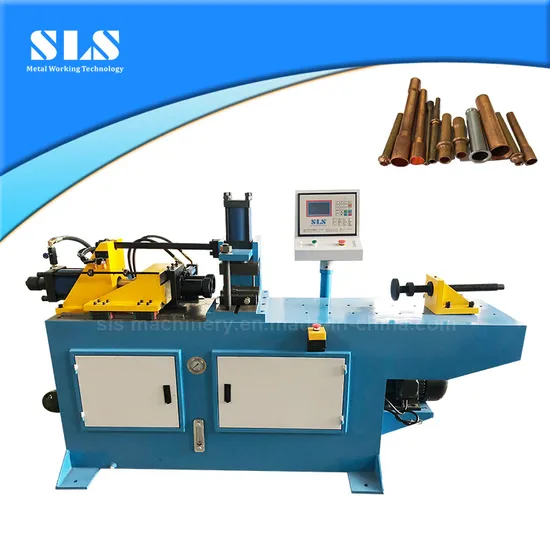

Brief Introduction on Metal Pipe End Forming Machine
SLS NC Copper Iron Aluminum Stainless Steel Etc Metal Tube Hydraulic Automatic Pipe Shrinking, Expanding, Reducing, Flaring,
Crimping, Beading, End Forming Machine is a kind of high efficiency,automatic machine. It can be do different types of end forming as
reduction, expansion, beads, flare and thickening.Each of these categories has special requirements and is used in a variety
of applications. It is controlled by hydraulic and electricity at the same time.It combines easy-to-use operation with high end
forming accuracy and cost effectiveness.


Features on Metal Pipe End Forming Machine Human Interface offers easy access to auto and manual operating modes.
All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.
Equipped with emergency stop device. Both manual and automatic operations are available.
Tube clamping and end forming driven by hydraulic.
Available pipe material: steel, stainless, aluminum, titanium and brass...
The design of the tooling help customer easy to change.
Water cooling system ensures the equipment long-time work stably under the high temperature.
CE&ISO 9001:2000.
Main Technical Parameters

Model	40NC	60NC	80NC	100NC	115NC	165NC	220NC
Capacity	40x2mm	60x2.5mm	80x3mm	100x3.5mm	115x4mm	165x5mm	220x8mm
Max. Forming Stroke	100mm	100mm	100mm	150mm	150mm	150mm	150mm
Forming Time	3-4s	4-5s	7-8s	9-10s	12-14s	15-18s	20-25s
Power	4Kw	5.5Kw	7.5Kw	11Kw	15Kw	22Kw	33Kw
Woking Pressure	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa

FAQ:

1.Q: Are you a manufacturer or trading company?	A: Yes, we are a manufacturer.We are focusing on metal Pipe/Tube Processing. machines production.
2.Q:Where is the nearest airport to your company?	A: Wuxi Airport or Shanghai Airport.
3.Q: How to choose the pipe/tube forming machines?	A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - End Forming Shape - End Forming Length - Other requirements
4. Q: Do you have CE certificate?	A: We have CE certificate.
5. Q:How about your service?	A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.

---
