Efficiency PP Polypropylene Rope Twine Making Machine The Ideal Plastic Baler Twine Making Machine

Product Description

Efficiency Pp Polypropylene Rope Twine Making Machine The Ideal Plastic Baler Twine Making Machine
This Agriculture PP Polypropylene Baler Twine Making Machine can produce many different sizes of pp pe split film,raffia yarn thread,these films are mainly used for making plastic baler twine and raffia ropes. This Agriculture PP plastic twine machine is very popular in Africa, Middle East, South America and Southeast Asia such as Algeria, Saudi Arabia,Egypt, Mexico,Ecuador and so on. We have helped many customer in these area to set up their own pp baler twine and rope factory.
1. CNRM PP Plastic Polypropylene Baler Twine Machine This plastic pp twine machine can produce many different size of pp split film which are mainly used for twisted rope,baler twine,banana twine, plastic raffia string, etc.
Material: Polypropylene(pp), Polyethylene(pe), mixed material, recycled material.
Rope Size: 5000-80000D
Rope Type: Flat yarn , twisted yarn.
Final package: 1kgs bobbin, 2kgs bobbin, 5kgs bobbin, 100-1000gram ball.
We are specialized in R&D,manufacturing and selling intelligent Plastic rope production line,mainly three series: Intelligent PP/PE monofilament Rope production Line, danline rope production line, Plastic pp baler twine rope production line.
Data-Plastic PP Twine Machine/Baler Twine Machine

Item	HDSLJ-70	HDSLJ--80	HDSLJ--90
T-die width	600mm	800mm	1000mm
Screw diameter	70mm	80mm	90mm
Ratio of L/D	30:1	33:1	33:1
Screw rotation speed	20-90rpm	20-90 rpm	20-90 rpm
drawing ratio	4-10	4-10	4-10
Power	100kw/60kw	130kw/80kw	150kw/100kw
Output	1200kg/24h	2100kg/24h	3000kg/24h
Machine weight	9000kg	12000kg	15000kg
Machine size(L *W*H)	25m*2m*2m	26m*2.2m*2.1m	27m*2.2m*2m

Also have High speed high capacity model pp baler twine making machine, production capacity max. 500kgs/hour.

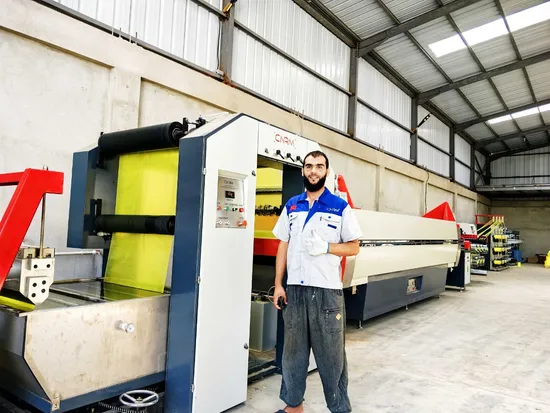

Detal Photo of PP Plastic Twine Making Machine
2. CNRM PP PE Plastic Rope Cord Machine(Monofilament)
1. Rope Raw material: PP(polypropylene), HDPE( polyethylene) ,100% new or recycle mixed material Rope. 2. Rope Size: 3-60mm.
3. Rope Type: 3 strand ,4 strand.
4. Production Capacity: 600-3000KG/24H.

Item	HDYSJ-70×33	HDYSJ-80×33	HDYSJ-90×33
Screw diameter	70mm	80mm	90mm
Fiber diameter	0.13-0.35mm	0.13-0.35mm	0.13-0.35mm
Fiber type	PP/PE/PET Monofilament Yarn For Making Rope or Net
Ratio of L/D	33:1	33:1	33:1
Rotation speed of screw	20-90r/min	20-90r/min	20-90r/min
Drawing ratio	4-10	4-10	4-10
Cooling mode	Water cooling	Water cooling	Water cooling
Power consumption	100kw/30kw	130kw/40kw	150kw/50kw
Max output capacity	1200kg/24h	2000kg/24h	3000kg/24h
Machineweight	10tons	12tons	15tons
Machine dimension(L×W×H)	20×3×2.5m	23×3×2.5m	27×3×2.5m

3. PP Danline Rope Making Machine and Production Line(Polysteel)
This is mainly for marine rope production-PP danline & Polysteel rope.
Rope Size: 3-80mm
Rope Type: 3 strand,4 strand, 8 strand, 12 strand rope and cordage.
Production Capacity: 1000-5000kgs/24hours.

Item	HDBSJ-80×33	HDBSJ-90×33	HDBSJ-100×33
Screw diameter	80mm	90mm	100mm
Mian Moror	37kw	45kw	55kw
Fiber diameter	1000D-3500D	1000D-3500D	1000D-3500D
Spinning holes(2500D)	64	96	128
Ratio of L/D	33:1	33:1	33:1
Rotation speed of screw	20-90r/min	20-90r/min	20-90r/min
Drawing ratio	8-15	8-15	8-15
Cooling mode	Water cooling	Water cooling	Water cooling
Hot oven	6000×600×200mm	6000×850×200mm	6000×1050×200mm
Max output capacity	2000-2500kg/24h	3000-3500kg/24h	4000-4500kg/24h

Advantage of machine 1:High output capacity.2:Longer life of the whole production line.3:AC Invertor & Motor which synchronizes the entire Extruder. 4:Latest technology used to force the melt into the die very effectively.
5:Take up small area.
6.Easy operation.
1). Best material selection
All steel are national standard steel;
All electrical appliances are domestic brand and international brand.
2). Professional producing
we produce all machines by ourselves, all machines are required to be modulated and main machine parts are required to be quenched .
3). Whole line machine
we can supply the whole line machine to make rope, from raw material to finished product.
About our company
More than 10 years experience of manufacturing rope production line and rope,so we could do the services below:1. Installing and debugging the whole rope&twine production line2. Train you how to operate the machines and tell me you the technology of practical rope&twine manufacturing.3.Supply you the pictures&video of our overseas installing and debugging.4.Best after sales service . We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
Excellent Service 1). Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2). Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3).Good After-Sales Service
We offer the Preventative Maintenance and After Sales Service.We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
Contact us to get the latest catalogue and price!

---
