Basic Info.
Timing Function
With Timing Function
Function
Washable Air Filter, External Drain Connect, LED Display, Automatic Defrost, Automatic Humidistat Control, Auto Restart, Adjustable Humidistat
Type
Desiccant Dehumidifier
Control Method
Fully Automatic Control
Dehumidification Capacity (Kg/H)
7.2
Dimension(L*W*H)
1060*63*965mm
Warranty of Core Components
1 Year
Applicable Environment (°c)
-10-50degrees Celsius
Video Outgoing-Inspection
Provided
Marketing Type
Ordinary Product
Adjustable Humidity Range (Rh)
1-95%
Transport Package
Standard Export Packing
Specification
Metal shell
Production Capacity
5000 Piece/Pieces Per Month
Packaging & Delivery
Package Size
114.00cm * 69.70cm * 107.00cm
Package Gross Weight
130.000kg
Product Description
Product Description
| Model | XZC-S100F |
| Processing air volume (m³/h) | 1000 |
| Regeneration air volume (m³/h) | 340 |
| Dehumidification capacity (KG/H) 20°C/RH60% | 7.2 |
| Power supply(V/Hz) | 380/50 |
| Rated power(KW) | 9.1 |
| Residual pressure outside the machine (Pa) | 300 |
| Process air inlet (mm) | 195 |
| Processing air outlet (mm) | 195 |
| Regeneration air inlet (mm) | 145 |
| Regeneration air outlet (mm) | 145 |
| Control method | Fully automatic control |
| Humidity adjustable range (RH) | 1-95% |
| Applicable environment (ºC) | -10-50ºC |
| Applicable area/ Floor height 2.6m | Temperature 20°C Humidity (30%-60%) | 50-180 |
| Runner specifications (mm) | 450*200 |
| Machine size (length*width*height mm) | 1060*603*965 |
| Net weight(kg) | 116 |
Product Parameters
| Model | XZC-30F | XZC-60F | XZC-S100F | XZC-S150F |
| Processing air volume (m³/h) | 300 | 600 | 1000 | 1500 |
| Regeneration air volume (m³/h) | 100 | 200 | 340 | 500 |
| Dehumidification capacity (KG/H) 20°C/RH60% | 2 | 4 | 7.2 | 10.5 |
| Power supply(V/Hz) | 220/50 | 380/50 |
| Rated power(KW) | 3.4 | 6.7 | 9.1 | 16 |
| Residual pressure outside the machine (Pa) | 150 | 200 | 300 | 300 |
| Process air inlet (mm) | 95 | 145 | 195 | 245 |
| Processing air outlet (mm) | 95 | 145 | 195 | 245 |
| Regeneration air inlet (mm) | 95 | 95 | 145 | 195 |
| Regeneration air outlet (mm) | 95 | 95 | 145 | 195 |
| Control method | Fully automatic control |
| Humidity adjustable range (RH) | 1-95% |
| Applicable environment (ºC) | -10-50ºC |
| Applicable area/ Floor height 2.6m | Temperature 20°C Humidity (30%-60%) | 15-50 | 30-100 | 50-180 | 80-270 |
| Runner specifications (mm) | 250*50 | 350*100 | 450*200 | 550*200 |
| Machine size (length*width*height mm) | 548*340*790 | 665*506*965 | 1060*603*965 | 1060*703*965 |
| Net weight(kg) | 50 | 68 | 116 | 153 |

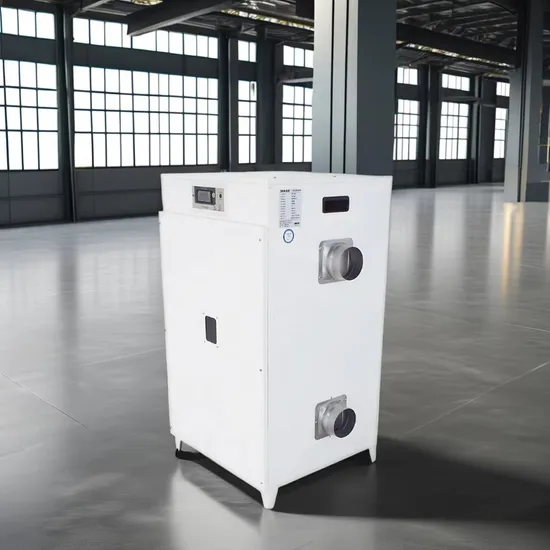

Detailed Photos
Company Profile
FAQ Q:Are you a manufacturer or a trading company?
A:We are a manufacturer with over 20 year experience on the Design,Mould, Tooling,R&D, Production, Quality checking, After sales service, having strong capacity to provide OEM & ODM solutions for you.
Q: What's the warranty period?
A: One year from the shipping date.
Q:Do you provide free samples ?
A:For the first cooperation, we need to charge the sample and freight cost. And ship out in 3-5 working days after test. Sample cost will be returned once you place bulk order.
Q:Do you accept small quantity for trial order?
A:We accept small quantity for trial order to support your business. But please be advised that it could be difficult to be arranged
>>
