Efficient Cooling System Psd Series Mobile CNC High-Speed Drilling and Milling Machine

Product Description

Efficient Cooling System PSD Series Mobile CNC High-Speed Drilling And Milling Machine
Product Description
Apply scope:
The machine is mainly used for drilling and milling of steel structures, iron towers, bridges, mechanical processing,g and other industries, such as connecting plate and floorboard, drilling and milling of tubes, baffles, and flanges in industries such as boilers, petrochemical, pressure vessel and so on; drilling holes, blind holes, step holes, chamfering and light milling.
Drilling Tapping Milling Tool inner cooling
Product structure:
This machine is mainly composed of a bed, gantry, drilling and milling power head, electric control system, centralized lubrication system, cooling system chips removal system, etc.
The characteristics:
1. The base and gantry of the equipment are welded from a steel structure. Sufficient heat treatment is carried out to eliminate internal stress. Therefore, the dynamic and static rigidity is excellent, and the deformation is very small.
2. On the longitudinal movement direction of the gantry installed two high load-bearing linear rolling guide rails on both sides of the base, to ensure flexible movement. On the double-sided adopt AC servo motor and precision ball screw pair for synchronous drive, to ensure the high positioning accuracy and repeated positioning accuracy.
3. A movable slide plate with CNC is installed on the crossbeam of the gantry. The Y-axis movement is guided by two linear rolling guide rails, driven by AC servo motors and precision ball screw pairs to ensure high precision of work.
4. This machine adopts a vertical CNC feeding slide drilling head, which is driven by a YPNC-B series spindle-specific variable frequency motor through a synchronous belt. The speed ratio is 1:2, and the low-speed torque is large. It can withstand heavy cutting loads and is also suitable for high-speed machining of hard alloy tools.
5. The drilling spindle adopts a precision hollow internal cooling spindle with a BT50 taper hole and a butterfly spring automatic tool-pulling mechanism, making tool replacement very convenient. It can be used to clamp carbide internal cooling bit and high-speed steel Fried Dough Twists bit and has the function of purging and cleaning the spindle taper hole.
6. Equipped with pneumatic knife cylinder automatic knife replacement, optional tool magazine.

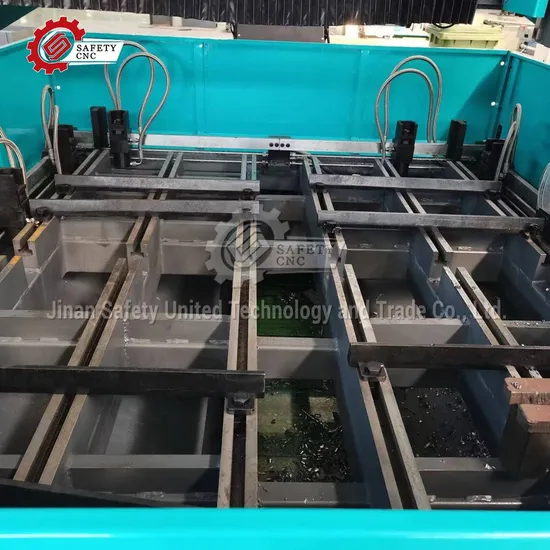

7. On the working table the clamping system adopts 12 sets of hydraulic automatic clamper, the maximum overlapping clamping thickness goes to 100mm. The button control improves production efficiency.
8. The CNC control panel is installed on the gantry and can move longitudinally with the gantry, so that easy to operate. The CNC system of this machine adopts the KND CNC system which is equipped with RS232 interface and LCD display screen. It is managed by the upper computer, and the drilling coordinates can be directly converted into CAD/CAM, which facilitates programming, storage, display, and communication.
9. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm. The hole position of the workpiece can be automatically generated into a machining program through a keyboard or CAD floppy disk input. Equipped with pre-drilling hole position prediction and re-inspection functions, easy to operate.
10. This machine is equipped with a flat chain automatic chip conveyor and a chip collecting trolley and is equipped with a high-pressure internal cooling pump, which can be used for internal or external cooling of the tool. The coolant can be recycled.
Technology Parameter

Model			PSD2010
Processing size		LxW(mm)	2000x1000
		Thickness(mm)	15-100
		Max. hole diameter (mm)	50
Drilling spindle		Quan. of spindle	1
		Model of spindle	BT50
		Speed of spindle(r/min)	30-3200
		Feeding stroke(mm)	350(Servo feeding)
		Tapping diameter(mm)	M26
Clamping mode			12sets of hydraulic clamper + manual on T-shape slot
Power of motor		Spindle motor(KW)	11(Servo motor)
		X-axis(KW)	2×1.3
		Y- axis(KW)	1.5
		Z- axis(KW)	1.5(with brake)
Precision of positioning(mm)			0.05mm
Precision of repeating positioning(mm)			0.04mm
CNC Control mode			KND1000
Quantity of axis with CNC			3
Chip removal and cooling method	Chip removal		Chain flat
	Quan. of chip removal		1pcs
	Speed of chip removal		1m/min
	Power of motor of chip removal		0.75KW
	Cooling mode		Inner+ external
	Power of motor of inner coolant		4KW
Auto. lubrication	Lubrication pressure		2MPa
	Oil of lubrication point		0.1ml
Weight of machine(T)			About 7T
Dimension(mm)			4200×2100×2900

Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer.
Q2: Can the machine parts be changed according to my requirements?
A2: Yes, we will try our best to give you the best products.
Q3:What is your payment term?
A3:30% T/T deposit paid in advance, 70% balance paid before shipping.
Q4: How can I get to your factory?
A4:We could pick you up at the airport or high-speed rail station.
Q5: What service can you provide before order?
A5:About the pre-sale service. We provide you answers to all your questions on our machines, such as technical parameters, price, payment terms, etc. If you wanna visit our factory and check the machines, we also can send you an invitation letter and give you our warmest welcome.
Q6: Can you finish the machine during the delivery time?
A6:We will finish the machine in time according to the determined lead time.

---
