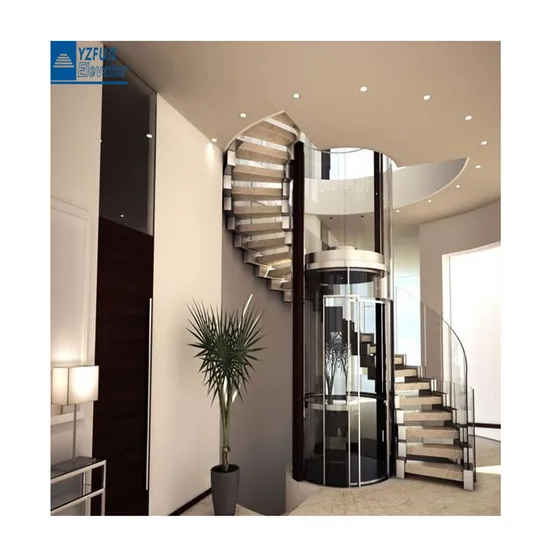

Circular 3 Floors Elevator for Home Circular Glass Panoramic Elevator

Product Description

Product Parameters

Capacity (Kg)	Person	Speed (m/s)	Entrance(mm)	Clear car dimension (mm)	Caroutstide dimension (mm)	Clear hoistway dimension (mm)	Pit depth (mm)	Overhead Height (mm)	Pit reaction load (KN)		Machine room reaction load(KN)		Rated power (KW)	Power supply capacity	Lead-in wire
Q	NO.	V	OP	CWXCD	SWXSD	HWXHD	PD	OH	R1	R2	R3	R4	KW	KVA	MM2
260	3	0.4	600	900x900	952x966	1600x1200	400	3000	41	36	18	18	1	2.5	4
		1.0					1000	3200					2	5.2	6
320	4	0.4	700	900x1000	952x1166	1600x1400	400	3000	43	38	20	20	1	2.5	6
		1.0					1000	3200					2	5.2	6
400	5	0.4	700	1000x1100	1052x1266	1700x1500	400	3000	45	40	22	22	1	2.5	6
		1.0					1000	3200					2.2	5.2	6

Round Luxury Villa ElevatorProduct Description
FUJI-C-01
Ceiling: Rose gold hariline stainless steel+mirror stainless steel, LED downlight
Front Wall: Rose gold hairline stainless steel
Side Wall: Rose gold hairline stainless steel
Rear Wall: Rose gold hairline stainless steel + rose gold mirror etched stainless steel
Car Door: Rose gold hairline stainless steel
Floor: PVC marble pattern floor
Our Advantages
1. Ultra-small pit ,suitable for various scenarios 4. High-end imported parts2. Precision curved door operator 5. Safety protection function3. Low noise 6. High-speed drive advantages
Ceiling & Floor
Human-Machine Interface 1. Simple and Intuitive Interface 2. Highly Sensitive Touch Feedback3. Smart Settings and Control 4. Elegant and Stylish Design
Company Profile
Asia Fuji Elevator, mainly focuses on the R&D and production of premium customized panoramic round villa elevators, aluminum steel square panoramic villa elevators, hydraulic home elevators, and other types. It has a professional R & D team in charge of technology research and testing.
With 25 years of in-depth involvement in the elevator industry, the technical team has acquired multiple invention patents and complies with international market standards, such as EN-81, EAC, CE, ISO, SGS, COC, and SASO certifications.
Our Certificates
Linyi Fuji Elevator has obtained the A qualification certificate of one-stop service of production, manufacturing, installation and maintenance approved by the state.
We have obtained honors like the "National Quality Inspection Stable and Qualified Products", "National Quality and Honest Outstanding Enterprise" and "High-tech Enterprise" and has won 15 patents in the elevator industry.
Packaging & Shipping
All elevator parts will be packed into solid wooden cases. Some parts will be wrapped by the film so that guarantee the machinery part not be destroyed after long time transportation.
After Sales Service
1. Pre-Installation Documents PreparationWe offer detailed Packing List, Elevator Maintenance Instruction, List of Construction Equipment & Tools, Elevator Installation List, etc.2. Online Support For InstallationOur engineers have more than 20 years of elevator experience and in well English speaking as well, so you don't need to worry about the elevators installation, we will provide the most professional technical guidance and the most attentive installation service to ensure that all elevators can be operated properly, and be recognized by the customer and obtain more opportunities for cooperation.
3. Systematic On-site Installation SupportWe have several professional team working for on-site installation locally in Ethiopia, Kenya, United Arab Emirates, etc, if you need on-site installation, we could send our team to your place to do installation work and train your operators for future maintenance.
4. 24 hours Online Service24H * 7 days Online Service Support, without festival limitation, to guarantee the timely and effectively service to our customers.

---
