| US$48.00 | 1 Piece (MOQ) |

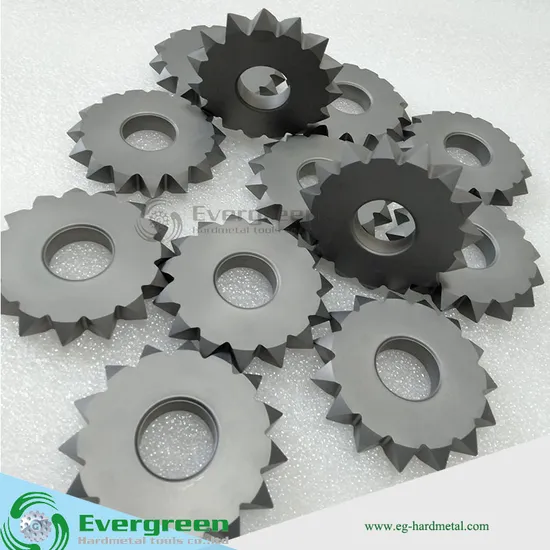

| Product Name | K20 various dimensions tungsten carbide saw balde/circular knives |
| Material | Co+WC 100% Virgin Raw Materials |
| Color | Nickel white/Black/Gray |
| Standard | DIN GB ISO JIS BA ANSI |
| Used | Brazed on the wood-working saw blade for cutting HDF |
| | |
| Grade | Physical and mechanical properties | ISO Code | Applications recommended | Proposal for welding | ||
| Density g/cnV | Hardness HRA(HV) | TRS Mpa | ||||
| YG6 | 14.6- 15.0 | ≥90.0 | ≥ 1800 | K20 | For the cutting of ordinary wood | use resistance welding.and the temperature should be not too high |
| YG8 | 14.6- 14.9 | ≥89.5 | ≥1900 | K30 | For the cutting of ordinary wood, also for aluminum | use resistance welding.and the Temperature should be not too high |
| EG20 | 14.4- 14.7 | ≥90.0 | ≥ 2000 | K20 | For the cutting of ordinary wood | use resistance welding.and the temperature should be no too high |
| eg25 | 14.3- 14.6 | ≥ 89.5 | ≥2100 | K30 | For the cutting of ordinary wood, also for aluminum | use resistance welding.and the Temperature should be not too high |
| eg5 | 14.6 -15.0 | ≥90.5 | ≥1900 | K10 | Applies to the cutting of hard wood, recycling wood and aluminum | use resistance welding.and the remperature should be not too high |
| JX9 | 14.5 -14.9 | ≥90.5 | ≥ 2000 | K10 | Applies to the cutting of aluminum opperand lesd.non-ferrous | recommend the high-frequency welding |
| YG6X | 14.7 -15.0 | ≥92 | ≥ 1800 | K10 | Applies to the cutting of the timber | recommend the high-frequency welding |
| eg05 | 14.8 -15.1 | ≥93.3 | &2500 | K05 | Applies to the cutting of hard Wood, also can be used for The cutting of soft metal | recommend the high-frequency welding |
| eg15 | 14.6 -15.0 | ≥92.5 | ≥ 2400 | K05 | Applies to the cutting of mard wood and aluminum | recommend the high-frequency welding |
| eg35 | 14.9 -15.2 | ≥ 93.5 | ≥ 2000 | K01 | Apply to the cutting of plywood, mdf board and sandwich board | recommend the high-frequency welding |
| eg40 | 12.8 -13.2 | ≥ 90.5 | ≥ 2000 | P40 | Apply to the cutting of steel | recommend the high-frequency welding |
