2024 New Construction Machinery 20 26 Ton Doosan Similar Big Hydraulic Track Backhoe Digger Crawler Excavators for Sale

Product Description

Product Description

Doosan Same Technology Big Bucket 26 Ton 23 Ton Excavator 1. Dootec DT-260 excavator has strong power, high stability, 6-cylinder branded engine. 2. The hydraulic system is purchased from a well-known brand, using Euro III engine, which has low fuel consumption and strong power. 3. The upgraded hydraulic system has better flexibility, low oil temperature and high working efficiency.

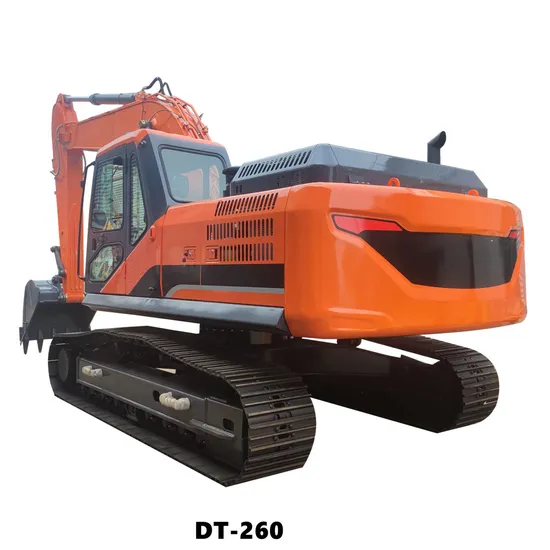

DT-260
No.	Item	Unit	Specification
1	Engine Model	/	Cumins QSB7 Euro II/III
2	Power	kw/rpm	132/169
3	Cylinder Number	/	6
4	Working Type	/	4 stroke, water cooling, Direct Injecton
5	Pump	/	K3V 131(China Kawasaki type for Doosan)
6	Main Controlling Valve	/	Korean Imported HF
7	Swing Motor	/	Eaton Imported
8	Walking Motor	/	Eaton Imported
9	Structure Weight	kg	26000
10	Bucket Capacity	m3	1.3
11	Length of Boom	mm	5.8
12	Length of Arm	mm	2.9
13	Power	/	Traditional Power
14	Buckect Type	/	backhoe
15	Performance	/
16	Swing Speed	rpm	12.4
17	Swing torque	kN/m	79
18	Walking Speed	km/h	4.9/3.1

Hot Product

No.	DT-65 Excavator Specifications
1	Engine Model	/	YANMAR 4TNV98-EXSDB1C
2	Emission	/	Euro III
3	Engine Power	/	39Kw/2100RPM
4	Cylinder Number	/	4
5	Injection Methods	/	Direct Injection
6	Performance
7	Bucket Capacity	m3	0.22
8	Structure Weight	kg	6000
9	Climbing ability	/	30°
10	Walking Speed	Km/h	4.5/2.1
11	Stick digging force	Ton	2.8
12	Bucket digging force	Ton	3.9
13	Pump	/	Mottrol(Doosan)
14	Main Controlling Valve	/	Korean Imported
15	Working Specification
F	Max. Digging Height	mm	6136
C	Max. Digging Depth	mm	3807
A	Max. Digging radius	mm	6000
D	Max.Unloading height	mm	5788
H	Maximum Vertical Digging Depth	mm	3037

DT160	Engine
	Engine Model	/	Cumins
	Power	kw/rpm	103/2000
	Cooling Type	/	Water Cooling
	Hydraulics	/
	Pump Steam	L/min	2×116
	Swing hydraulic motor type	/	26.5
	Working hydraulic oil circuit	Mpa	Standard 32.5/Boost 34.3
	Walking hydraulic circuit	Mpa	32.5
	Pilot pump flow	L/min	27.7
	Specification
	Structure Weight	kg	15000
	Bucket Capacity	m3	0.28-0.75
	Length of Boom	mm	4600
	Length of Arm	mm	2500
	Buckect Type	/	backhoe
	Power	/	Traditional Power
	Performance	/
	Swing Speed	rpm	12
	Walking Speed	km/h	3.4-4.9

DT185	Engine
	Engine Model	/	Cummis
	Power	kw/rpm	110/2050
	Cooling Type	/	water Cooling
	Structure Weight	kg	18000
	Bucket Capacity	(m3)	0.28-0.75
	Length of Boom	mm	4600
	Length of Arm	mm	2500
	Buckect Type	/	backhoe
	Power	/	Traditional Power
	Hydraulics
	Main Pump Type	/	Variable displacement axial piston race pump
	Pump Steam	l/min	2×116
	Swing hydraulic motor type	/	26.5
	Working hydraulic oil circuit	Mpa	Standard 32.5/Boost 34.3
	Walking hydraulic circuit	Mpa	32.5
	Pilot pump flow	L/min	27.7
	Performance
	Swing Speed	rpm	12
	Walking Speed	km/h	3.4-4.9
	Bucket digging force	kN	Standard 77.4/Boost 81.3
	Arm Digging force	kN	Standard 57.8/Boost 62

No.	Item	unit	specification
1	Engine
2	Engine Model	/	Cummis 6BAT5.9 Euro II/III
3	Power	kw/rpm	132/2000
4	Displacement	L	5.9L
5	Cylinder Number	/	6
6	Working Type	/	4 stroke, water cooling,direct injection/ Multi-point EFI
7	Pump	/	K3V 112(Kawasaki for Doosan)
8	Main Controlling Valve	/	Korean Imported HF
9	Swing Motor	/	Eaton Imported
10	Walking Motor	/	Eaton Imported
11	Structure Weight	kg	23000
12	Bucket Capacity	m3	1
13	Length of Boom	mm	5700
14	Length of Arm	mm	2700
15	Power	/	Traditional Power
16	Buckect Type	/	backhoe
17	Performance
18	Swing Speed	rpm	12.4
19	Swing torque	kN/m	79
20	Walking Speed	km/h	4.9/3.1

DT-260
No.	Item	Unit	Specification
1	Engine Model	/	Cumins QSB7 Euro II/III
2	Power()	kw/rpm	132/169
3	Cylinder Number	/	6
4	Working Type	/	4 stroke, water cooling, Direct Injecton
5	Pump	/	K3V 131(China Kawasaki type for Doosan)
6	Main Controlling Valve	/	Korean Imported HF
7	Swing Motor	/	Eaton Imported
8	Walking Motor	/	Eaton Imported
9	Structure Weight	kg	26000
10	Bucket Capacity	m3	1.3
11	Length of Boom	mm	5.8
12	Length of Arm	mm	2.9
13	Power	/	Traditional Power
14	Buckect Type	/	backhoe
15	Performance	/
16	Swing Speed	rpm	12.4
17	Swing torque	kN/m	79
18	Walking Speed	km/h	4.9/3.1

DT350	Engine
	Engine Model	/	Cummis 6CT8.3 Euro III
	Power	kw/rpm	194/2000
	Displacement	L	8.3
	Cylinder Number	/	6
	Structure Weight	kg	34600
	Bucket Capacity	m3	1.45-1.65
	Length of Boom	mm	6255
	Length of Arm(mm)	mm	3150
	Power	/	Traditional Power
	Buckect Type	/	backhoe
	Performance
	Swing Speed	rpm	11.4
	Swing torque	kN/m	92
	Walking Speed	km/h	5.0/3.1
	Ground specific pressure	Kpa	56
	Bucket digging force	kN	188 / 199.9
	Arm Digging force	kN	127.5 / 135.3
	Working Type	/	4 stroke, water cooling, Direct Injecton
	Hydraulics
	Main Pump Type	/	Variable displacement axial piston race pump
	Main relief set pressure	Mpa	Standard 27.9/ Boost 34.3

DT420	Engine
	Engine Model	/	Cummis 6 CT8.9 Euro III
	Power	kw/rpm	243/2000
	Cooling Type	/	Water Cooling
	Structure Weight()	kg	41000
	Bucket Capacity()	m3	1.9-2.2
	Length of Boom()	mm	6550
	Length of Arm(mm)	mm	3280
	Power	/	Traditional Power
	Buckect Type		backhoe
	Performance
	Swing Speed ()	rpm	9.5
	Swing torque ()	kN/m	3.3-5.5
	Bucket digging force ()	kN	242.1/264.6
	Arm Digging force()	kN	218.5/139.1;176.4/ 193.1;152.9/166.6
	Hydraulics
	Main relief set pressure()	Mpa	2×285
	Max. Pump Steam		Standard 31.4/ Boost 34.3
	Walking hydraulic circuit (Mpa)	Mpa	26.5
	Swing hydraulic circuit (Mpa)	Mpa	26.5
	Pilot pump flow()	L/min	24

Engine
DT520	Engine Model		Cummis QSM11
	Engine Rated RPM	r/min	1800
	Power	KW	298
	Pump	/	Kawasaki 212
	Main Controlling Valve	/	Parker for Doosan
	Swing Motor	/	Korean Eaton/Doosan
	Walking Motor		Doosan
	Structure Weight	KG	51500
	Dimension
	Width of Crawler	mm	600
	Overall track width	mm	5465
	Track Gauge	mm	3300
	Track ground length	mm	4470
	Rear turning radius	mm	3665
	Minimum ground clearance	mm	760
	Counterweight ground clearance	mm	1460
	With of Upper Body	mm	3278
	Width of Down Platform	mm	3350-3900
	Cabin Height	mm	3350
	Total transport length	mm	12110
	Total transport Width	mm	3350-3900
	Total transport height	mm	3705
	Pilot Type	/	Gear Pump

mini excavators:
WS-17 WS-18 WS-15
WS-13 WS-12 WS-08 Company Profile
Established in 2014, Wishope Machinery focus on construction & agricultural machinery products manufacturing and export for around 10 years. The R&D team has fully learned the design concepts of Japanese and Korean hydraulic excavators, with years of sales and modification, all the product design is very mature and stable. Over 250 employees and 22 senior engineers. We export small to big excavators to over 20 countries such as Indonesia, Malaysia, Colombia, and mini excavators exported to the USA and to European countries.Wishope Hydraulic Excavators - innovative construction machinery: Digging, excavating and shoveling are the main tasks of the excavator. Whether in civil engineering digging a pit or dredging in a body of water: Our hydraulic excavator offers the optimum machine for every task.Get an overview of all micro excavators and find the right construction machine for your application. A wide range of attachments are available for our machines. Excavator buckets and shovels, vibrators and hammers, and grabs make your excavator a real working machine.China's excavators are growing at a high annual export sales rate of about 15% in the past 3 years. There are big Chinese excavator like our Dootech. After decades of technological precipitation, Chinese excavators have been able to find a balance between price and quality in a very balanced manner, so as to achieve high export sales.
Our Advantages
What Kinds of Excavators We Can Provide?Hydraulic excavators are divided into many types according to the tonnage of the model. 1-3 tons are called micro excavators, 6-13 tons are called small excavators, 15-39 tons are called MIDI excavators, and more than 40 tons are called large-scale excavators.We can provide all kinds of crawler excavators, including Dootech brand with Korean technology, mini long-reach excavators with Japanese technology, etc.At the same time, we also customized accessories, such as the modification of long arms, OEM amphibious excavators, and the modification of excavator attachments, the spare parts of various brands of excavators.

---
