US$90,000.00-180,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Pressure Supply Type
Hydraulic Pressure
Spinning Deformation Condition
Hot Spinning
Finished Product Shape
Special Shape
Place of Origin
Shanghai, China (Mainland)
Production Capacity
40 Set/Sets / Year
Product Description

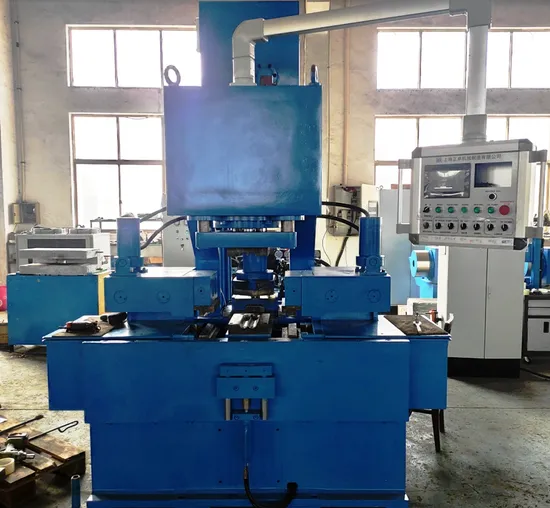

This machine is used to squeeze and calibrate small heated elbow on the same level. A qualified 180°elbow of Φ=76mm thickness=12mm R=1.5D can be squeeze to R=0.5D and achieve technical requirement.
Consists of four parts: Hydraulic system: Hydraulic station, oil cylinder, oil tank, oil pipe Electrical control system: Control cabinet, operator panel, proximity switch, medium frequency heater Mechanical system: Machine frame, left and right squeezing die, back die, sizing die, position block Water cooling system: Water tank, compression engine, refrigeration pump, cooling pump Temperature measuring system: Infrared temperature sensor, printer
| Tube Diameter | 32 - 76 mm |
| Tube Thickness | 3 - 12 mm |
| Bend R before Squeezing | R ≤ 1.5D |
| Bend R after Squeezing | R = (0.6 - 1.2)D |
| Pump Power | 18.5 KW |
Elbow heating
Squeezing & Sizing
>>
