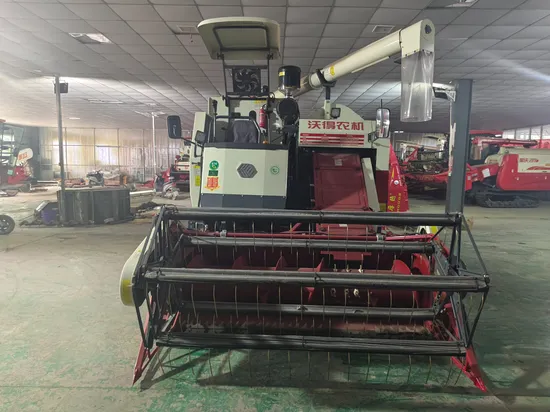

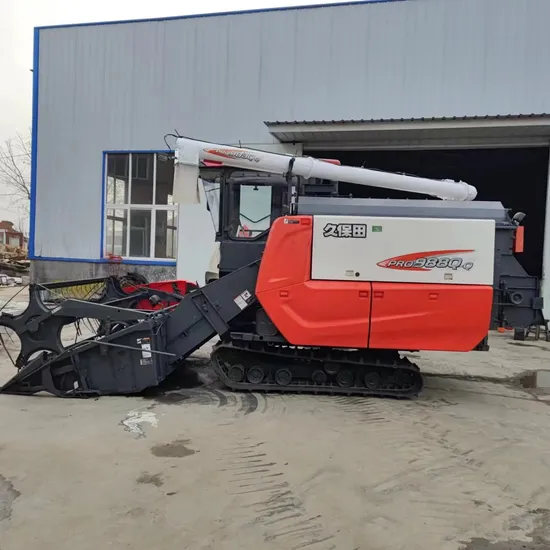

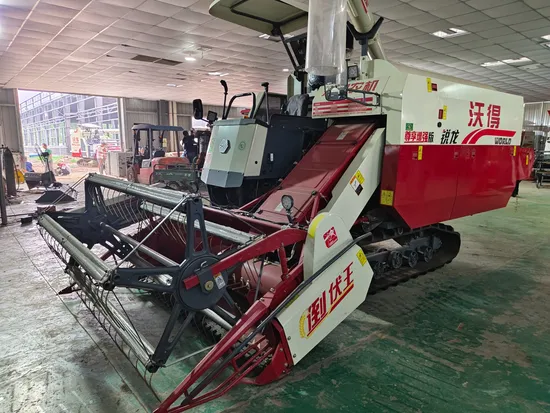

| Model | 4LZ-4(PRO988Q) |
| Structure type | Crawler self-propelled full feed |
| Length (mm) (transportation status/working status) | 5570/5730 |
| Width (mm) (transport state/working state) | 2540/2540 |
| Height (mm) (transport state/working state) | 2710/2940 |
| Structural mass (kg) | 3670 |
| engine model | V3800-DI-T-ET02 |
| Structure type | Vertical water-cooled 4-cylinder turbo diesel engine |
| Total displacement (L) | 3.769 |
| Calibration power/calibration speed [(kW)/(r/min)] | 72.9/2600 |
| fuel, Fuel tank capacity (L) | 140L diesel |
| Starting method | Electric |
| Battery Specifications (V+AH) | 12*100 |
| Track width (mm) X ground length (mm) | 500*1890 |
| Track gauge (mm) | 1350 |
| Track ground pressure (kPa) | 20.2 |
| Minimum ground clearance (mm) | 290 |
| Transmission type | Mechanical transmission + hydraulic stepless transmission [HST] |
| Gear shift | 3F+3R. |
---------------------------------------------------------------------------------------------------------------------------------
