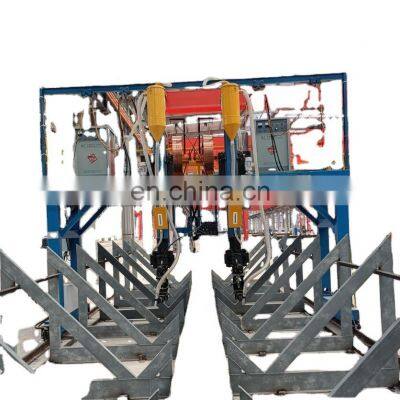

GANTRY WELDING MACHINE FOR H BEAM STEEL

Product Description

Product Description
GANTRY WELDING MACHINE FOR H BEAM STEEL Machine IntroductionThe gantry welding machine is mainly used for submerged arc welding of assembled H beam, the working principle is as following steps: 1.One H-beam steel placed on workpiece support frame with 45°, which is suitable for boat welding;2.Gantry welding machine walks on rails at adjusted welding speed;3. Use SAW welding to weld two seam;4. Arc-guide frame automatic seam tracking; 5. Flux automatic feed and recovery system. Technical ParametersModelLHM-4000/LMH5000Rail gauge4000mm/5000mmWeb height200-1500mm/200-2000mmFlange width200-800mmWork-piece length4000-15000mm or as user’s requestModel of welding machineLMH-1000/MZ-1250/ American Lincoln DC-1000Welding typeBoat-type weldingWelding speed0.15-1m/minReturning speed3m/minOverall power9.6kWQuality Control Process Machines in Stock Packaging and Shipping ALL OUR MACHINES ARE PACKAGED AND SHIPPED AS PER THE INTERNATIONAL EXPORT STANDARD. Machine Recommended 1. CNC PLASMA CUTTING MACHINE2. CNC GAS/OXY-FUEL CUTTING MACHINE3. CNC PIPE CUTTING MACHINE4. CNC PROFILE CUTTING MACHINE5. CNC TUBE AND PLATE CUTTING MACHINE6. CNC MULTI-TORCH CUTTING MACHINE7. H BEAM CUTTING MACHINE8. H BEAM WELDING LINEALL ABOVE MENTIONED MACHINES ARE AVAILABLE FOR YOU. Company Introduction WE ARE MANUFACTURER OF CNC PLASMA AND OXU-FUEL CUTTING MACHINES, CNC FIBER LASER CUTTING MACHINES, H BEAM WELDING LINE AND AUTOMATIC ROBOT SYSTEM IN CHINA. OUR MACHINES ARE WIDELY USED IN MANY INDUSTRY FIELDS AND SOLD TO OVER 50 COUNTRIES AND REGIONS. WELCOME TO PAY VISIT TO OUR FACTORY AND HAVE FURTHER COOPERATION.

---
