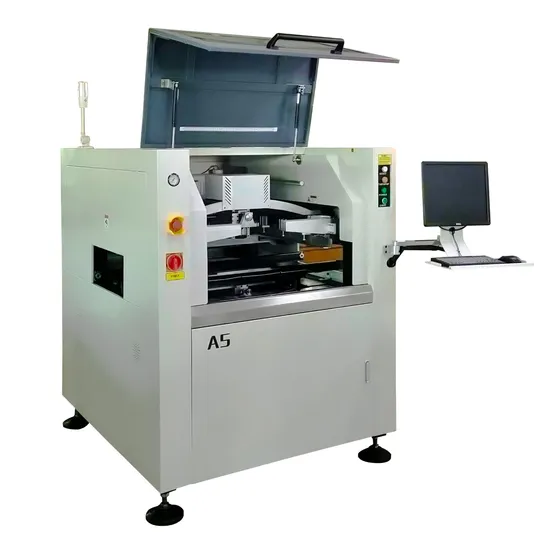

Product IntroductionSMT FULL AUTOMATIC VISUAL SOLDER PASTE PRINTER
The main function of Automatic Solder Paste Printing Machine is to print the solder paste onto PCB. Through the precise control system, it can apply the solder paste evenly on the PCB, and at the same time, it can also adjust the thickness and position of the solder paste and other parameters finely, which can effectively guarantee the quality and productivity of SMT placement. Product Description1. Universal for large and small stencils, with good and wide applicability. Automatic stencil positioning system, saving time for wire change and improving overall efficiency.
2. Adopt uniform ring and high brightness coaxial light, advanced top and bottom vision matching system. All-round light source compensation can identify all types of Mark dots and adapt to different color boards such as tinned, copper, gold covered, tin sprayed, FPC, etc. to ensure high precision machine alignment.
3. Automatic and effective stencil cleaning system, dry cleaning, wet cleaning vacuum cleaning three ways can be freely combined, also can be manually cleaned stencil, CCD part and cleaning part separate design, when the CCD work, CCD independent movement, reduce the servo motor load and movement impulse, improve the accuracy and speed and service life. Top-down spraying system, uniform spraying. Software function can control the alcohol and stencil paper, effectively save more consumables; vacuum cleaning with a special fan, strong and effective.
4. The three-axis linkage has super high dynamic characteristics and can quickly achieve PCB board thickness adjustment. The three-axis linkage has super high dynamic characteristics, which can quickly realize the PIN pin jacking height adjustment of PCB boards with different thickness.
5. The unique belt drive system effectively prevents cardboard from falling off. The programmable motor controls the transport speed and stops the board in a precise position. The direction of left and right board entry and exit can be freely selected. Adopt flexible side clamping and vacuum suction cavity, effectively clamping PCB to ensure complete flat contact between PCB stencils. 6. Windows XP is an easy-to-learn and easy-to-use operating interface. Good human-machine dialogue function, teaching and navigation function for program files, each step is prompted for all operators to quickly familiarize themselves with the menu in English and Chinese. Operation logs, fault logs, analysis and diagnosisce.
Product Parameters

	Model	A5
Item
Screen Frames	Min Size	370*370mm
	Max Size	737*737mm
	Thickness	25-40mm
PCB Min Size		50*50mm
PCB Max Size		400*340mm
PCB Thickness		0.4-6mm
PCB Warpage		<1%
Transport Height		900±40mm
Transport Direction		Left-Right/Right-Left/Left-Left/Right-Right
Transport Speed		Max 1500mm/s Programmable
PCB Board Location	Support System	Magnetic Pin/Up-down table adjusted/Support block by hand
	Clamping System	Side clamping/Vacuum nozzle/Automatic retractable Z-directional pressure board
Print Head		Two independent inline motor-driven print heads
Squeegee Speed		6-200mm/s
Squeegee Pressure		0-15KG motor control
Squeegee Angle		60°/55°/45°
Squeegee Type		Stainless steel(standard),plastic
Stencil Separation Speed		0.1-20mm/s Programmable
Cleaning System		Dry,Wet,Vacuum (Programmable)
Table Adjustment Ranges		X:±10mm; Y:±10mm; θ:±2°
CCD FOV		8*6mm
Solder Paste Inspection		2D Inspection
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<7s (Exclude Printing& Cleaning)
Product Changeover		<5min
Air Required		4.5-6kg/cm²
Power Supply		AC220V,50/60Hz
Control Method		PC Control
Machine Dimensions		1220*1355*1500mm
Machine Weight		Approx:1000kg

Product DetailsStencil Positioning System
Universal for large and small stencils, with good and wide applicability. Automatic stencil positioning system, saving time for wire change and improving overall efficiency.PCB Transport & Clamping System
The unique belt drive system effectively prevents cardboard from falling off. Theprogrammable motor controls the transport speed and stops the board in a precise position. The direction of left and right board entry and exit can be freely selected. Adopt flexible side clamping and vacuum suction cavity, effectively clamping PCB to ensure complete flat contact between PCB stencils.Cleaning System
Automatic and effective stencil cleaning system, dry cleaning, wet cleaning vacuumcleaning three ways can be freely combined, also can be manually cleaned stencil, CCD part and cleaning part separate design, when the CCD work, CCD independent movement, reduce the servo motor load and movement impulse, improve the accuracy and speed and service life. Top-down spraying system, uniform spraying. Software function can control the alcohol and stencil paper, effectively save more consumables; vacuum cleaning with a special fan, strong and effective.
