Shantui 0.04cbm Mini Excavator Se17sr Small Digger 1.8ton Crawler Excavator

Product Description

Product Description

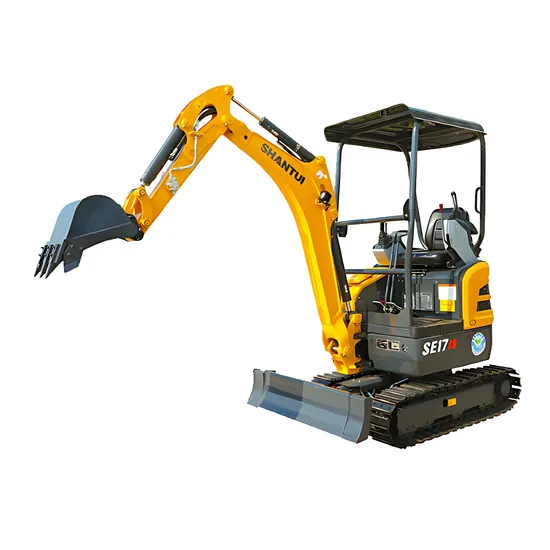

Shantui SE17SR 1.8 Ton Hydraulic Mini Crawler Excavator

Advantages:

Configuration selling point
An industry top-tier brand engine delivers robust power. The machine is equipped with a load-sensitive control hydraulic system that operates at high system pressure, ensuring exceptional efficiency, as well as smooth and synchronized actions.
Ease of maintenance and operation comfort
The machine is equipped with the mechanical suspension seat, the high-power hot air system. The machine is equipped with Bluetooth radio. The all-hydraulic pilot control features excellent maneuverability and allows for easy maintenance.
Adaptability to diverse working conditions
The machine features a zero-tail swing design, chassis with variable width, and a boom side swing structure, making it appropriate for operations in narrow spaces. The machine is equipped with several sets of optional attachment pipelines to meet the requirements of diverse working conditions.

Product Parameters

Main Specification	Operating Weight	1800kg
	Type	Backhoe bucket
	Bucket Capacity	0.04cbm
	Bucket Digging force	16KN
	Arm Digging force	9.5KN
	Ground Press	29Kpa
	Swing speed	9.5r/min
	Fuel Tank	19L
	Cooling system	5L
	Engine Oil	3.7L
	Hydraulic Oil Tank	20L
Overall Dimension	Transport Length	3570mm
	Height	2400mm
	Transport Width	990/1300 mm
	Crawler Width	1587mm
	Thead	1230mm
Scope of Work	Max.Digging Height	3545mm
	Max.Dumping Height	2451mm
	Max.Digging Depth	2295mm
	Max.Vertical Digging Depth	1670mm
	Max.digging Distance	3910mm
	Min.Swing Radius (front)	1431mm
	Min.Swing Radius (Tailer )	650mm
Engine	Engine Model	D902
	Emission Standard	EUROV EPA Tier4
	Type	3 Cylinder Directly injection
	Displacement	0.898L
	Rated Capacity	11.8KW/2300Rpm
Hydraulc System	Type	Single plunger pump
	Rated Discharge flow	28L/min
	Main Pump	Hengli
	Main Valve	Hengli
	Swing motor	Eaton
	Traveling Motor	Eddie
Traveling System	Support rollers quantities	3*2
	Traveling speed	0-2.2~4.3km/h
	Drawbar pulling force	18KN
	Grade ability	58%
	Ground clearance	360mm

Detailed Photos
