Product Details
Product Description
Product Description

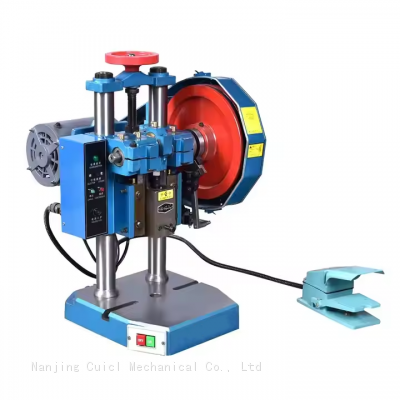

manual table press
Description
A punch press is a stamping press. In national production, the stamping process has the advantages of saving materials and energy, high efficiency, low technical requirements for operators, and the ability to make products that cannot be achieved by mechanical processing through various mold applications. Therefore, its use is becoming more and more extensive. A desktop punch press is a small-tonnage punch press that is placed on a table to work.
Application
Desktop punch presses are used in the fields of clocks, electronics, toys, electrical appliances, instruments, meters, telecommunications, etc.
Technical parameter
Nominal Force
| 1500N
|
Table size
| L to R
| 220 mm
|
| F to B
| 125mm
|
Stroke
| 30mm
|
Slider stroke count
| 250/min
|
Maximum loading height
| 60mm
|
Blank hole size
| 20*40mm
|
Slider center to body distance
| 65mm
|
Slider bottom dimensions
| 55*50mm
|
Dimensions
| 30*23*45mm
|
Motor power
| 0.55KW
|
Total weight
| 70KG
|
Please contact us for more details:
>>
