Plastic PP/PE Sheet/Board/Panel Extruder Line Automatic Board Production Line

Product Description

plastic pp board extrusion machine/plastic PE sheet production line
Detailed Introduction:
Extruder

Screw Diameter	120mm
Ratio of the Screw	35:1
Barrel:	38CrMoAIA, under the nit riding treatment and water-cooling compulsive feeding section
Screw:	38CrMoAIA, under the nit riding treatment
Nit riding depth on screw	0.4-0.6mm, hardness: HV>740
Nit riding depth on barrel	0.5-0.7mm, hardness: HV>940
Barrel heating	8 sections heating, cast aluminum heating ring, heating power: 6kw*8 zones Heated covered with stainless steel protection cover
Barrel cooling	Fan cooling, fan power: 0.25kw*7 sets
Reduction box	Hard tooth reducer, material of gear is 20CrMoTi,
Driving power	165kw motor, frequency control by ABB inverter
Production output	350-400kg/h

Mold
Complete mold set (including the mold die head, hydraulic screen
exchanger, distributor, and melt metering pump)

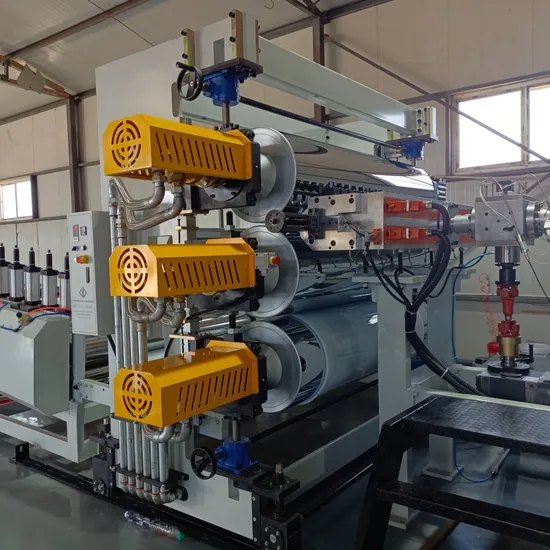

Three roller calender

1. Roller barrel: φ400*1750mm;
2. The three-roller rack is vertical type, steel plate welding structure;
3. The three-roller system is driven by three bevel wheel hard tooth gear reducer;
4. Spacing adjustment structure of the three rollers are Worm gear reducer;
5. Roller temperature controlling system is equipped with temperature controller.

Cooling bracket
1. Length: 9m,
2. Material is stainless steel tube, after polishing
3. Equipped with protective film coating device and side edge
cutting device, pneumatic cutting
4. Online edge cutting devices: two knives
5. Crusher to recycle the cutting edge wastage online.

Hual off
1. Hauling machine adopts rubber-roller cylinder to realize clamping.
2. Rubber roller size is φ250*1750mm.
3. Power of hauling off device: 2.9kw motor
4. Pulse counting metering: high precision rotary encoder
Cutter
Cutting width: According to model
Cutting mode: equipped with clamping hold-down device
Metering mode: fixed length metering device, with accurate and stable counting
Shearing: long time continuous cutting, the minimum cutting length is >500mm.
Accuracy: length error <=1mm, diagonal error is less than 3mm.
Manipulator↓
Final Products:
Custom Reference Data:

Board width	500-2000mm
Board thickness	3-30mm
Max. extrusion capacity	350-800kg/h
Production line speed	15m/min
Processing Type	Extruding Machine

Factory Condition:

Location	Indoors
Power Supply	No dangerous area
Humidity	≤95%
Temperature	0-40ºC
Power	3-phase, 380V, 50Hz
Total Installed Power	150KVA(Depends on machine model)
Cooling Water	≤25ºC ≥0.3MPa, outdoor water tank: 15-20m³, water circulated with production line
Compressed air	0.3 m³ /min, >0.5MPa, Equipped with 4-5.5kw air compressor
Production Line Dimension	20m*3m*3.5m

Company Profile:
Package & Transportation:
FAQ
Q1: Your company is a trading company or a machine manufacturer?
A1:Our company is a plastic machinery manufacturer which is engaged into this trade more than 15 years.As a manufacturer,we could supply our machine,service,technical support and maintenance directly and it's more convenient.
Q2: How to get an accurate offer?
A2: Because our offer and technical specification is associated with your final product and requested capacity,we will choose the right model of extruder and mould after understanding all the information,then we could supply our plan.We could fully exchange information by Email, whatsapp or wechat.
Q3: Where is your factory and which port is the nearest to your factory?
A3: My factory is in Qingdao city, Shandong Province and the nearest seaport is Qingdao port.
Q4: How long is the delivery time?
A4: Generally it will take 30-45 days.
Q5: Could you send your engineers to our factory?
A5: Yes,we will send our engineers to your factory for installation,commissioning and training after machines arrive at your factory.In addition,if you need our engineers available in the future,we also could send our engineers.
If you have any questions, please do not hesitate to contact us. We Look forward to listening to you!
Pre-sale We provide presales service in various forms, for example, making investment budget, manufacturing planning, etc. so that customers make a reasonable plan with less cost.Investment budgeting---We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.Plant Planning---We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission etc.On-saleDetailed design of workshop lay-outTechnological information of provided productsSchedule about design, manufacture and installationWorking & Producing processTraining courses for the technician team so that the installation is safe and standardAfter-saleFor customers buying our products, we provide them training so that they can use and maintain the machine independently.We will offer to customers technical support in time. If needed, we will offer on-line guidance and assistance.We can provide free technical guidance if customers need new equipment, add or rebuild equipment.We will prioritize the product upgrading of previous customers.

---
