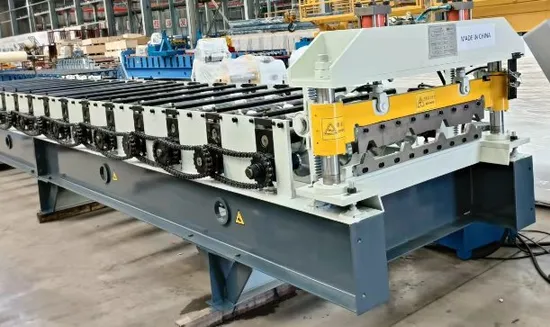

single layer roof sheet roll forming machine metal forming machine
If the plate with a coating,the coating should be consistent with coating inspection standards of the relevant color-coated,should not have skin off,so as not to effect quality of roll forming.
If the material is galvanized steel,the galvanized should be consistent with the relevant testing standards of the galvanized steel,should not have zinc layer off,so as not to effect the quality of roll forming
| No | Item | Parameter | Note |
| 1 | Raw material | Pre-painted galvanized steel coil(PPGI)
Galvanized steel (GI) AZ 150g | Meet your requirement |
| 2 | Thickness | 0.3mm-0.8mm | Meet your requirement |
| 3 | Feeding width/coil width | 1200mm | Same with profile sample |
| 4 | Useful width | 1035mm | Same with profile sample |
| 5 | Side stands' thickness | 16mm | Exported standard which has enough thickness to support the machine shafts and rollers which is better then that 12mm or 14mm thick machine stands |
| 6 | Forming Speed | 16m/min | About 960m/h |
| 7 | Forming station | 14stations | Calculated the forming stations according to your profile . Not more to waste your money and not less to impact the forming effects. 14 stations are the suitable stations. |
| 8 | Total Power | 5.5 kw (main motor power) +4 KW(hydraulic pump station motor power) | 9.5 KW total enough. |
| 9 | Reducer Type | Gear Reducer | Higher stability when running |
| 10 | Mill bed material | 350H beams welded ,8mm standard H beams' thick | 350 height H beams was stronger than 300 height H beams.We use the best enough material to you dear. |
| 11 | Voltage | 380 V or as your requirements | Special voltage ,please let me know.Because the motor needed to be customized. |
| 12 | Diameter of shaft | 70mm diameter solid shafts | Exported standard . within 0.6mm thick material, use 70mm solid shafts are enough. |
| 13 | Chain size | One inches GARHAR BRAND | Exported standard |
| 14 | Cutting type | pillar guide type | Exported standard |
| 14 | Forming Shaft | 45# steel with grinding process | Exported standard |
| 15 | Forming Roller | 45# steel with hard chrome coating | Exported standard |
| 17 | Cutting Blade | Cr12 with hard treatment | Exported standard which shear life exceeds 1 million times. |
| 18 | PLC/Touch Screen | DELTA brands | From Taiwan,China |
| 19 | Electrical motor | SHANGHAI brand | Top brand , quality tested |
| 20 | Encoder | OMRON Brand with aluminum bracket | From Japan |
| 21 | Low-voltage electrical | SCHNEI DER Brands | From France |
| 22 | Machine rough size | L6.8m*W1.5m*H1.5m | When machine finished , then can have accurate machine size |
| 23 | Machine rough weight | 4tons | When machine finished , then can have accurate machine weight |
| 24 | Machine with legs | Have | Can lift machine height |
