Ewp Lpro-16 Series Reverse Osmosis System for Water Filtration

Product Description

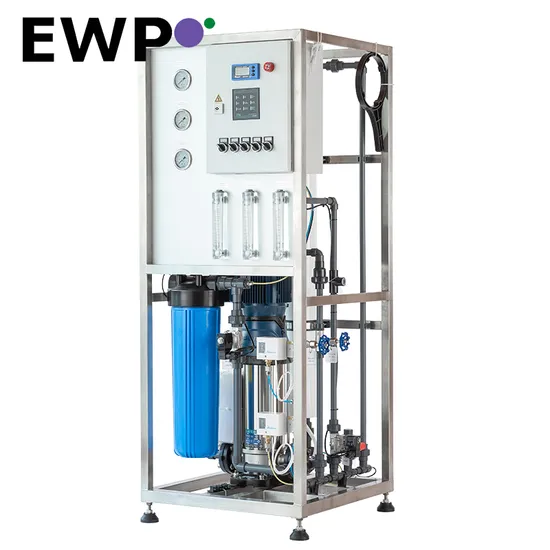

EWP Lpro-16 Series Reverse Osmosis System for Water Filtration The smart, clean utilitarian industrial design of the EWP LPRO/BWRO/PTROM/PTROL Series allows for convenient installation, user-friendly operation, and ease of maintenance. These skid-mounted, packaged systems are pre-plumbed and pre-wired complete on a steel frame with panel-mounted pressure and flow instrumentation allowing for straight forward system monitoring and control. EWP offers an assortment of both basic and premium designs of pure water systems that can be private labeled or customized. Benifits

Fully equipped and customizable	Individually tested and preserved
Expandable and skid mounted	Low operation and maintenance costs
Components easily accessible	Easy maintenance and servicing
Pre-plumbed, wired and assembled	1-year limited warranty

Operating condition Maximum Recovery: 65% - 75% Nominal Rejection: 95-99%

Maximum Feed Temperature	°C (°F)	35 (95)	SDI		<5
Minimum Feed Temperature	°C (°F)	5 (41)	Free Chlorine		undetectable
Maximum Feed Pressure	bar (psi)	5 (72)	Iron	ppm	<0.1
Minimum Feed Pressure	bar (psi)	2 (29)	Manganese	ppm	<0.05
pH (Continuous)		4 ~ 9	Organic matter	ppm	<1

Specifications

Small size RO system with 4" membranes
LPRO-B/P16 series	Capacity		Power rate (50HZ)	RO membrane	width*depth*height
			feed water TDS<1500ppm	(1-6 pcs)	mm
LPRO-16-1500	1500gpd	0.25m3/h	1.5kw	4040	700*650*1650
LPRO-16-3000	3000gpd	0.50m3/h	1.5kw	4040	700*650*1650
LPRO-16-4500	4500gpd	0.75m3/h	1.5kw	4040	700*650*1650
LPRO-16-6000	6000gpd	1.00m3/h	1.5kw	4040	700*650*1650
LPRO-16-9000	9000gpd	1.50m3/h	2.2kw	4040	700*650*1650
LPRO-B/P412 series	Capacity		Power rate (50HZ)	RO membrane	width*depth*height
			feed water TDS<1500ppm	(1-6 pcs)	mm
LPRO-412-6000	6000gpd	1.00m3/h	1.5kw	4040	700*1650*1350
LPRO-412-9000	9000gpd	1.50m3/h	2.2kw	4040	700*1650*1350
LPRO-412-12000	12000gpd	2.00m3/h	3.0kw	4040	850*2350*1350
LPRO-412-15000	15000gpd	2.50m3/h	3.0kw	4040	850*2350*1350
LPRO-412-18000	18000gpd	3.00m3/h	3.0kw	4040	850*2350*1350
Small size RO system with 4" membranes
BWRO-B14 series	Capacity		Power rate (50HZ)	RO membrane	width*depth*height
			feed water TDS<3000ppm	(1-6 pcs)	mm
BWRO-14-1500	1500gpd	0.25m3/h	2.2kw	4040	700*650*1650
BWRO-14-3000	3000gpd	0.50m3/h	2.2kw	4040	700*650*1650
BWRO-14-4500	4500gpd	0.75m3/h	2.2kw	4040	700*650*1650
BWRO-14-6000	6000gpd	1.00m3/h	2.2kw	4040	700*800*1650
BWRO-B412 series	Capacity		Power rate (50HZ)	RO membrane	width*depth*height
			feed water TDS<3000ppm	(1-6 pcs)	mm
BWRO-412-6000	6000gpd	1.00m3/h	3.0kw	4040	700*1650*1350
BWRO-412-9000	9000gpd	1.50m3/h	3.0kw	4040	700*1650*1350
BWRO-412-12000	12000gpd	2.00m3/h	4.0kw	4040	850*2350*1350
BWRO-412-15000	15000gpd	2.50m3/h	4.0kw	4040	850*2350*1350
BWRO-412-18000	18000gpd	3.00m3/h	4.0kw	4040	850*2350*1350

Basic RO Process diagram Raw water----Raw water feed pump---Sand filter---Activated carbon filter---Softener (optional)---Cartridge PP filter----High pressure pump---RO system---Pure water tank----UV sterilizer----Fine filter(optional) CIP system and Antiscalant dosing system are optional.
Environmental World Products Founded in 2004, EWP is an international group with diversified cultures. We have members in USA, South Africa, Nigeria, Malaysia and China. Through international networks around the world, we are able to provide a variety of water treatment products from residential, commercial and industrial components as well as systems. EWP is aimed at a better quality standard environment by supplying water treatment-related products. EWP hopes to establish a better living standard for the present and in the future. Your ONE source for ALL standard and custom water treatment components and systems with a global sales network and services. Our Values -always provide exceptional value. -always provide outstanding service. -always promote technological innovation. -always act ethically and lawfully. -always act environmentally responsible. -always act socially responsible. -always build relationships based on mutual respect. Our Strength EWP's engineering team possesses technology and experience to assemble RO systems for over 20 years, and with degree in electrical, structural, mechanical and hydraulic. Our engineering team focuses on providing the best quality and continuously improving products made by EWP. Our Services -Software: Solidworks, ROSA, AutoCAD, CAD 3d Plant -Licensed welding etc. -Technical drawings: 3-dimensional drawing, electrical wiring diagram, P&ID drawings, flow chart, instruction manual and other documents upon requests. FAQ Q: Are you trading company or manufacturer? A: Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.We have experience over 20 years. EWP is a leading water treatment components wholesaler. Q: What's the information you need to know before order? A: The material, pressure rating and quantity. B: What's the piping standard? Q: How long is your delivery time for the water treatment components? A: Depend on different products. Some are in stock while some are not. Feel free to contact us for more details. Q: How can you control the quality and delivery? A: Production strictly according to CE / ISO standards. We provide top-notch components and some of them are CE listed. B: All our machines will be 100% tested before delivery. Wooden package is strong and safety for long delivery. Q: What's your warranty? A: Our warranty for machine is 1 year. Different components have different warranty period.

---
