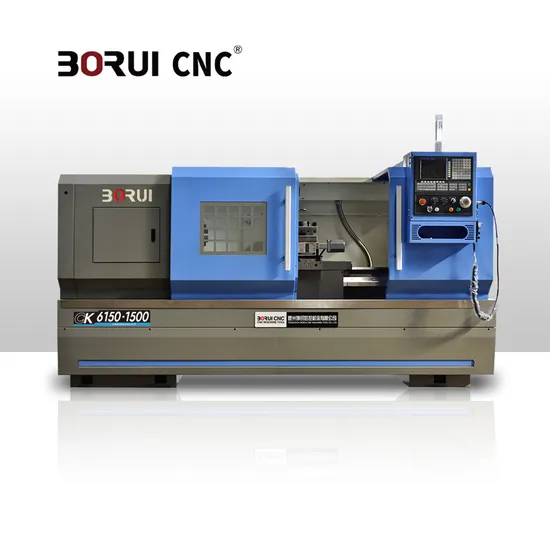

Ck6150 High Quality Automatic Flat Bed CNC Lathe Machine for Sale

Product Description

Ck6150 High Quality Automatic Flat Bed CNC Lathe Machine for Sale
Product Description
CK series CNC Lathe machine is and economical, practical type machine tools with good quality.
The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
CNC Lathe Features:
A high strength, widening the carriage, suitable for heavy cutting
Four position electric turret
Frequency conversion stepless speed regulation
Standard configuration: manual chuck
Optional configuration : hydraulic chuck
Product Parameters
The main specification :

Specification	Unite	Ck6150	Ck6160
Max swing over bed	mm	500	600
Max swing over cross slide	mm	250	395
Max processing length	mm	850/1500	850/1500
X/Z axis travel		X:300 Z:1000/1600	X:300 Z:1000/1600
Spindle nose	mm	A2-8/11	A2-8/11
Thu-hole dia.of spindle	mm	82	82/130(optional)
Spindle drawn tube diameter	rpm	65	65/none
Max .spindle speed	mm	1800	1600
Chuck size	kw	250	250/380(380)
Spindle motor	mm	7.5	11
X/Z axis position accuracy	mm	±0.006/300	±0.006/300
X/Z repeatability	mm	±0.005/300	±0.005/300
X/Z feed motor torque	n.m	5/7.5(1meter)7.5/10(1.5 meter)	5/7.5(1meter)7.5/10(1.5 meter)
X/Z feed motor power	kw	1.3/1.88	1.88/2.5
X/Z axis fast feeding speed	Mm/min	8000/10000	8000/10000
Tailstock sleeve dia.	mm	75	75
Tailstock sleeve travel	mm	200	200
Tailstock sleeve taper		MT5	MT5
Tool post type		4 workstations	4 workstations
Cutting tool shape size	mm	25*25	25*25
Guide form		Flat guide	Flat guide
Total power capacity	kva	13	15
Machine dimension	mm	2750*1550*1700mm	2750*1550*1700mm
N.W	kg	2850	3150

Product standard configuration:

No.	ITEM	Number	Standard configuration
1	Numerical control system	1/set	Optional system (gd980, Taiwan, FANUC, Siemens) etc.
2	Chuck	1/set	Three jaw chuck K11 250 (optional K11 320)
3	Tailstock	1/set	Manual tail base
4	X -ball screw	1/set	PRC
5	Z -ball screw	1/set	PRC
6	Electric turret	1/set	LD4B-A(6150)
7	X,Z-Lead screw bearing	1/set	PRC
8	X,Z- Coupling	1/set	PRC
9	Spindle bearing	1/set	PRC
10	Fuselage Casting	1/set	High quality resin sand casting
11	Spindle assembly	1/set	Assembly spindle
12	Spindle clamping		Manual chuck
13	Paint	1/set	Color can be configured according to customer requirements, not special requirements according to our standard color configuration
14	Lubrication	1/set	Joint venture (electric lubricating oil pump, lubricating oil circuit is installed)

Details Display

Company Profile

Packaging & Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
