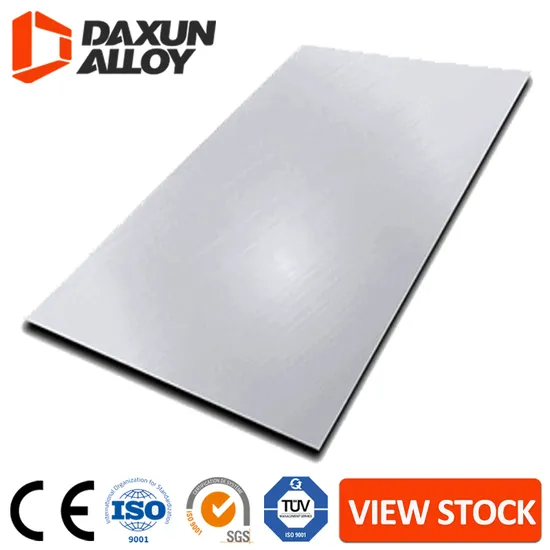

Superior 304 Stainless Steel Sheet Plate Cold Rolled 1219*2438 Specification Baosteel Tisco

Product Description

Product Description
Product Parameters

Grade	201 304 316 321 309 310S 2205 2507 410 420 430 440 409 630 17-4
Stainless Plate and sheet Type	Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Standard	ASTM A240 / ASME SA240 ASTM/ASME 240/480,JIS 4305,DIN EN 10088-2JIS, AISI, ASTM, GB, DIN, EN, etc
Stainless Steel Plate and sheet Length	1000mm-13000mm or as required
Stainless steel Plate Width	1000mm-1219mm-1500mm-1800mm-2000mm-2500mm or as required
Stainless steel Plate Thickness	0.3 to 120mm or as required
ASTM A240 Stainless Steel 304 Plate Process	Hot/ Cold Rolled/forging
Stainless steel Plate surface	No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM A240Stainless steel sheet, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Stainless steel Sheet ASTM	ASTM A240
Stainless steelSheet AMS	AMS 240
Tolerances of width and thickness	ASTM-ASME-GB-EN-DIN-JIS
Stainless steel Plate standards and approvals	EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 EN ISO 9445 ASTM A 480 ASTM A 959 ASME IID
Stainless steel Plate & Sheet Sizes	1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm,1500*6000,Cold rolled 304 Stainless Plate 0.5-6.4 mm,Hot rolled 304 Stainless Plate 3.0-60.0 mm
Stainless steel Plate Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard ASTM A240Stainless Steel Sheet suppliers
Cutting	To provide a comprehensive service, we use a variety of cutting methods, including:Laser Plate Cutting,Plasma Plate Cutting,Oxy-propane Flame Cutting
Plasma profiles	As per customer's drawings
Value added services for 304 Stainless Plate	Laser cutting, Waterjet cutting, Plasma cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing.
Manufacturer	POSCO, Aperam, ATI, Baosteel, TISCO, ArcelorMittal, VDM, Nippon Metal, Tsingshan, Delong.
China Stainless steel sheet Manufacturer	ASTM A240Stainless Steel Stainless steel sheet: material 3/16″ [5.00 mm] and over in thickness and over 10″ [250 mm] in width;Stainless Sheet: material under 3/16″ [5.00 mm] in thickness and 24″ [600 mm] and over in width;Steel Stainless Stainless steel sheet: Steel Stainless Clad plate is a composite steel plate made by bonding Stainless Plate, etc.ASTM A240Stainless SteelStrip: cold-rolled material under 3/16″ [5.00 mm] in thickness and under 24″ [600 mm] in width.
Stainless steel sheet Origin	CHINA
Packing of Stainless steel sheet	Bundles with waterproof cloth outside or plywood box
Test	UT, SGS testing, TUV etc
Why buy Stainless steel sheet from DAXUN?	Free quote,Free sample,EN 10204 3.1,Mill Test Certificate is supplied with shipment,NABL Approved Lab Reports,Any third party inspection is accepted,Tested to ASTM A923 Method "C" or ASTM G48 Method "A".Minimum Nitrogen content and Ferrite Count TestGrade: AISI 304/S30400
	Manufacturing: cold-rolled plate, hot-rolled plate, forged plate
	Standard: ASTM, ASME, GB, DIN, JIS, ISO, EN, BS
	Type: cold-rolled thin plate, hot-rolled thick plate
	Surface: 2B, NO.1, NO.4, HL, BA, 8K, etc.
	Length: 2438mm3048mm6000mm can be customized
	Origin: TISCO, Baosteel, Posco, Tsingshan, Delong

Exceptional flatness and precise thickness accuracy
Daixun Alloy's stainless steel plate products are renowned for their exceptional flatness and precise thickness accuracy. Leveraging a rigorous quality control system, we produce highly uniform stainless steel plates that exhibit outstanding formability and superior corrosion resistance.
Surface Finishing
Utilizing state-of-the-art automatic control technology, we ensure precision throughout the stainless steel plate production process. This meticulous approach allows us to roll the plates under optimal conditions, resulting in finely processed surfaces with excellent glossiness that has been consistently praised by our satisfied customers.
Strict Quality ControlAt Daxun, we cut and finish superior quality stainless steel sheets to meet your exact size specifications. Our sheets are fully certified, and as a proud member of BSSA and ISO 9001 certified, we source all our materials from reliable factories. Each stainless steel sheet undergoes rigorous quality control procedures from start to finish, ensuring that you receive products that exceed your highest expectations.
Stainless Steel Plate Surface Description

Finish Designation	Method and degree of finish
No.1	After hot rolling, heat treatment, pickling or other equivalent treatment is applied.
No.2D	Annealing and pickling are performed after cold rolling; material is soft with surface of silver-white luster; used for general applications and deep drawing.
No.2B	After 2D finish, skin pass rolling is performed to obtain a more suitable luster; the surface becomes very exquisite; used for general applications.
No.3	Intermediate 100-120 grit finish; used for applications in which surface polishing is performed after shaping.
No.4	General 150-180 grit finish; used for restaurants and kitchen equipment and tools.
#240	240 grit finish; used when a finer finish than No. 4 is required; typically for restaurants and kitchen equipment and tools.
#320	320 grit finish polished product.
HL	This finish is performed by continuous linear polishing using an abrasive of appropriate grain size; mainly used for architectural applications.
BA	Achieved by performing bright annealing after cold rolling and then skin pass rolling to obtain even greater reflectance; provides excellent corrosion resistance; used for household appliances, kitchen equipment, and automobiles.
8K	Through multiple grinding, it achieves very high brightness and smoothness, like a mirror.

Packaging & Shipping
Company Profile
Certifications

304/304L/304LN/304H stainless steel Shhet/plate composition
Grade	304	304L	304LN	304H
UNS Designation	S30400	S30403	S30453	S30409
Carbon (C) Max.	0.08	0.030*	0.03	0.04 - 0.10
Manganese (Mn) Max.	2	2	2	2
Phosphorous (P) Max.	0.045	0.045	0.045	0.045
*** (S) Max.	0.03	0.03	0.03	0.03
Silicon (Si) Max.	1	1	1	1
Chromium (Cr)	18.0-20.0	18.0-20.0	18.0-20.0	18.0-20.0
Nickel (Ni)	8.0-11.0	8.0-11.0	8.0-11.0	8.0-11.0
Molybdenum (Mo)	-	-	-	-
Nitrogen (N)	-	-	0.10-0.15	-
Iron (Fe)	Bal.	Bal.	Bal.	Bal.
Other Elements	-	-	-	-

316/316L316H stainless steel Shhet/plate composition
Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316	Min	-	-	-	0	-	16	2	10	-
	Max	0.08	2	0.75	0.045	0.03	18	3	14	0.1
316L	Min	-	-	-	-	-	16	2	10	-
	Max	0.03	2	0.75	0.045	0.03	18	3	14	0.1
316H	Min	0.04	0.04	0	-	-	16	2	10	-
	max	0.1	0.1	0.75	0.045	0.03	18	3	14	-

321/321H stainless steel Shhet/plate composition
Grade	321	321H
UNS Designation	S32100	S32109
Carbon (C) Max.	0.08	0.04-0.10
Manganese (Mn) Max.	2	2
Phosphorous (P) Max.	0.04	0.04
*** (S) Max.	0.03	0.03
Silicon (Si) Max.	0.75	0.75
Chromium (Cr)	17.0-20.0	17.0-20.0
Nickel (Ni)	9.0-12.0	9.0-12.0
Molybdenum (Mo)	-	-
Nitrogen (N)	0.1 Max.	0.1 Max.
Iron (Fe)	Bal.	Bal.
Other Elements	Ti=5(C) to 0.70%	Ti=4(C) to 0.60%

310/310S stainless steel Shhet/plate composition
Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 310	0.015 max	2.0 max	0.15 max	0.020 max	0.015 max	24.00 - 26.00	0.10 max	19.00 - 21.00	54.7 min
SS 310S	0.08 max	2.0 max	1.00 max	0.045 max	0.030 max	24.00 - 26.00	0.75 max	19.00 - 21.00	53.095 min

For more detailed information on our premium stainless steel rods, feel free to reach out to Jiangsu Daxun Alloy Co., Ltd. We are here to assist you with your inquiries.
Mechanical Properties of Various Grades of Stainless Steel Plates

Tensile Strength			Yield Strength
Alloy	UNS Designation	Spec.	psi	MPa	ksi	psi	MPa	ksi	Elongation in 2 inches (min.) %	Grain Size Req.	Max. Hardness	Modulus of Elasticity (x106 psi)
304	S30400	A249, A312	75,000	515	75	30,000	205	30	35	-	90 Rb	28
304L	S30403	A270 A312	70,000	485	70	25,000	170	25	35	-	90 Rb	28
304LN	S30453	A249, A688	75,000	515	75	30,000	205	30	35	-	90 Rb	28
304H	A30409	A249, A312	75,000	515	75	30,000	205	30	35	7 or coarser	90 Rb	28

The Mechanical Properties of grade 316L Stainless Steel are displayed in the following table.
Grade	Tensile Str	Yield Str	Elong	Hardness
	(MPa) min	0.2% Proof	(% in 50mm) min
		(MPa) min		Rockwell B (HR B) max	Brinell (HB) max
316	515	205	40	95	217
316L	485	170	40	95	217
316H	515	205	40	95	217

	Tensile Strength			Yield Strength
Alloy	UNS Designation	Spec.	psi	MPa	ksi	psi	MPa	ksi	Elongation in 2 inches (min.) %
321	S32100	-	75,000	515	-	30,000	205	-	35
321H	S32109	-	75,000	515	-	30,000	205	-	35

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
310S	7.9 g/cm3	1402 °C (2555 °F)	Psi - 75000 , MPa - 515	Psi - 30000 , MPa - 205	40%

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
	(MPa) min	0.2% Proof	(% in 50mm) min
		(MPa) min		Rockwell C (HR C)	Brinell (HB)
UNS S31803 / 2205	621	448	25	31 max	293 max
UNS S32205 / 2205	621	448	25	31 max	293 max

Grade	Property	Value
2507/ S32750	Density (g/cm3)	7.8
	0.2% Offset Yield Strength	80 ksi
	Ultimate Tensile Strength	116 ksi
	0.1% Offset Yield Strength 0.2%	91 ksi
	Elongation in 2 inches, %	15%
	Hardness Rockwell C	32
	Impact Energy	74 ft.-lbs
	Density	0.28 lb per inch3
	Modulus of elasticity	28 x 10(6) psi
	Coefficient of thermal expansion	7.2 x 10(-6) per of at 68 to 212 of
	Thermal conductivity	8.7 Btu/hr ftoF
	Heat capacity	0.12 Btu/ lb oF
	Electrical resistivity	31.5 x10(-6) ohm-inch

For comprehensive details about our stainless steel rod offerings, please get in touch with Jiangsu Daxun Alloy Co., Ltd. Our team is eager to provide you with all the information you need.FAQ
Q1: What products can you offer?
A: We proudly offer a comprehensive range of general steel types including 310S, 316L, 304, 304L, 201, 904L, 316H, 316, 316L 300 series.
Additionally, we provide 400 series and duplex stainless steel varieties such as 2205, 2304, 2101, 2507, along with high-nickel alloy options like 904L, 800H, and 600H.
Q2. Can you produce the products according to my own drawings?
Yes, we can produce products precisely according to your drawings, ensuring complete satisfaction.
Q3. How does your factory handle quality control?
Quality is our top priority. We consistently emphasize stringent quality control measures from start to finish.
Q4. Can I request to change the form of packaging and transportation?
Yes, we can modify the packaging and transportation methods to meet your specific requirements,
however, any additional costs and expenses incurred during this period will be borne by you.
Q5. How does your factory handle quality control?
Quality is paramount. We place great importance on ensuring exceptional quality control throughout the entire process.
Q6. How long is the delivery time?
A: Our delivery time ranges from 7 to 20 working days after payment confirmation.
If the order is urgent, we will expedite production to meet your deadline.
Q7. What are your Payment Terms?
A: For small orders, we require 100% T/T in advance or Western Union payment.
B: For standard orders, 30% T/T in advance and the balance 70% before shipment.
C: For large orders, we accept 100% Irrevocable LC at sight.
Q8: Can you produce DDQ (Deep Drawing Quality)?
A: Yes, we can. Our materials are suitable for producing stainless steel pots, sinks, bowls, and more. Share your requirements with us, and we will adjust the mechanical properties accordingly.
Q9: How can I obtain a sample?
A: FREE samples are available for your evaluation. If you need a small piece, we can cover the courier cost, depending on the situation.
Q10: Which countries have you exported to?
A: To date, we have exported our stainless steel materials to Vietnam, Thailand, Turkey, Russia, Morocco, South Korea, India, Pakistan, UAE, Ukraine, and more.
Q11: How can I visit your company?
A: You can fly to Guangzhou Baiyun International Airport, where we will gladly arrange to pick you up.

---
