US$1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Main Material
Stainless Steel
Material
SUS304 or SUS316L
Operating type
Continuous Operating
Transport Package
Playwood Cases
Production Capacity
100 Set/Month
Product Description
Made-in-China Leading Company TOP10 Supplier

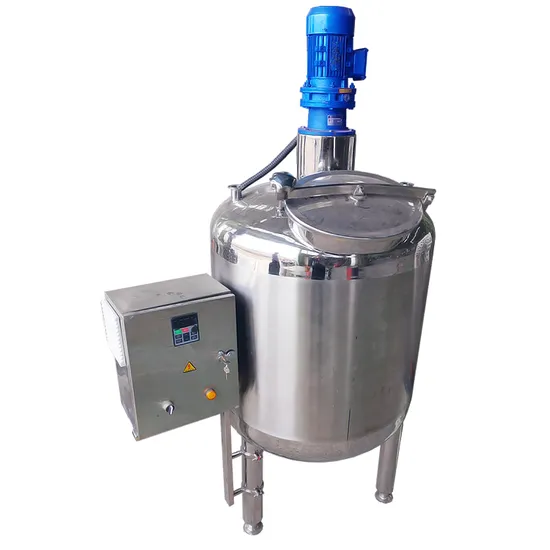

Sanitary stainless steel chemical tank
Sanitary stainless steel chemical tank can be used as liquid storage tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.
Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
1.Q: Are you manufacturer or trading company? |
A: Rayen is a factory with an international sales company specialized in support for global distributors. |
2.Q: How could we confirm the details of the products? |
A: RAYEN will provide the detail drawings for you to confirm. |
3.Q: How long the warranty will be? |
A: It could use several year without external force factors.We have 1 year warranty. |
4.Q: Do you take L/C? |
A: Yes, we accept Western Union, T/T and irrevocable L/C payable |
5.Q: Can we become your distributor in our country? |
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent. |
>>
