Mini Oil Processing Machine 1-2tpd Cooking Oil Refinery Machine Oil Refinery Machine

Product Description

Product Description

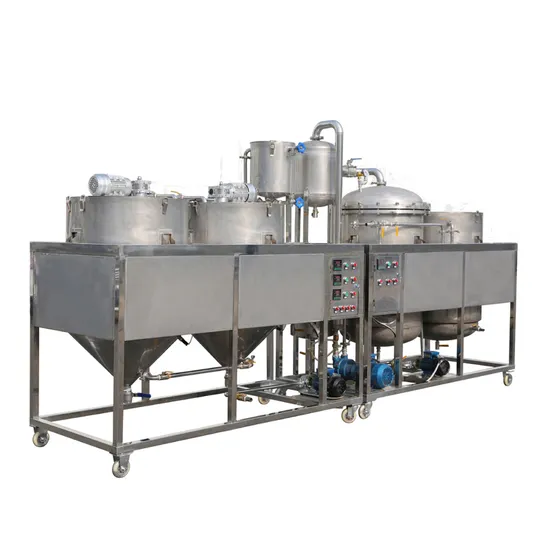

The HT-JL500 edible oil refining device consists of a refining tank, a vacuum dehydration tank, a decolorization tank, a vacuum pump, an oil transfer pump, an alkali tank, a metering tank, and an electrical control cabinet. It is equipped with an automatic temperature control device, vacuum dehydration, and heat insulation. The thermal insulation device and the feeding buffer device can realize the functions of degumming, deacidification, drying and decolorization of crude oil.

Product Parameters

No	Parts	Parts specification	Qty	Tank capacity/work capacity (L)	Power (kw)
1	Refining tank	DN700*1300	2	330/250	12/0.74
2	Vacuum dehydration tank	DN650*1290	1	390/250	12
3	Vacuum buffer tank	DN300*500	1	35	/
4	Decoloration tank	DN650*1100	1	360/300	/
5	Water circling vacuum pump	2BV2061	1	/
6	Oil Pump	/	2	/
7	Processing capacity	1-2t/24h

HT-JL500 edible oil refining unit production capacity:
The processing capacity of the refining equipment is related to the oil refining process and the grade of the finished oil. The processing cycle of the refining tank is related to the quality of the raw oil and the grade requirements of the finished oil. The processing capacity of the refining tank is 200-250L/tank, the dehydration and drying tank matches the refining tank, the filtration capacity of the decolorizing tank is 300L/tank, and the time is about 4-5 hours.
(1) The raw oil is of good quality. After heating, hydration, sedimentation, dehydration and other processes, it takes about 4 hours to process one tank.
(2) When the quality of crude oil is poor and the grade of finished oil is high, it takes 12-24 hours to process a tank of oil through heating, hydration, sedimentation, alkali refining, water washing, dehydration and other processes.
Edible oil refining is a set of processes or treatments necessary to turn vegetable raw oil into edible oil.
Raw vegetable oil, obtained from seeds by pressing, solvent extraction, contains free fatty acids and other components such as phospholipids, waxes, peroxides, aldehydes, and ketones, which contribute to undesirable flavor, odor, and appearance; for these reasons, all the oil has to be refined.
We can provide the whole Oil produce equipments(from sheller,roaster, feeder,pressing, filtration to refinery)
Other customized oil refinery machine: (1-200t)

Installation case

Application
Oil Refining Machine
It is suitable for refining various crude oil, vegetable oil, such as sunflower seed oil, tea seed oil, peanut oil, soybean oil, corn oil, groundnut oil and so on.
