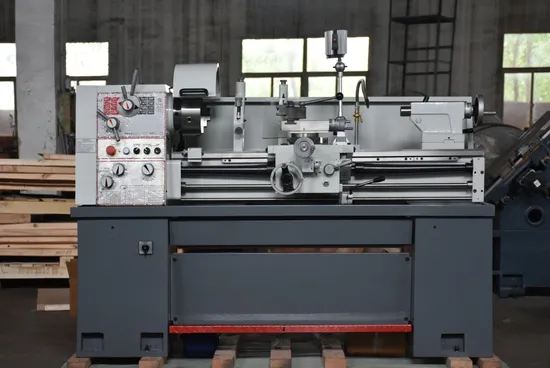

High precision CQ6236F Metal Lathe Machine with CE Standard

Product Description

Product Description
Manual Metal Bench Lathe Main Features:
1. Precision ground and hardened bed ways.2. The spindle is supported with precision roller bearings. 3. Headstock gears aremade of high quality steel ground and hardened.4. Easy operating speed change levers. Removable gap is provided for larger diameterwork. 5. Easy operating gear box has various feeds and thread cutting function.6. Circular appearance as optional.
7. 51mm big spindle bore as optional.Main specification:

Specification		GH1340A		CQ6236F
	Max.Swing.over bed	Φ330mm(13)		Φ356mm(14)
General Capacity	Max.Swing.over cross slide	Φ195mm(7-5/8)		Φ210mm(8-5/8)
	Max.Swing.over gap	Φ480mm(19)		Φ506mm(20)
	Bed width	205mm(8)
	Distance between centers	1000mm/750mm(40/30)
Spindle	Taper of spindle bore	MT5
	spindle bore	Φ38(1-1/2)
	Steps of spindle speeds	16steps
	Range of spindle speeds	45-1800rpm
	Spindle nose	D-4
	Metric thread range	0.45~7.5mm(22kinds)
Threading	Inch screw thread range	4~112TPI(40kinds)
and	Range of longitudinal feeds	0.03-0.688mm(0.0011-0.0271in/rev)
Feeding	Range of cross feeds	0.015-0.220mm(0.0003-0.01in/rev)
Leadscrew	Diameter of leadscrew	Φ22mm(7/8)
	Pitch thread of leadscrew	4mm(8T.P.I)
	Travel of tailstock quill	120mm(4-3/4)
Tailstock	Diameter of tailstock quill	45mm(1-25/32)
	Taper of tailstock quill	MT3
	Main motor power	1.5/2.4(3HP)
Power	Coolant pump motor power	0.04(0.055HP)
Overall dimensions of lathe(L×W×H)		1880×720×1440mm	1880×740×1460mm
Packing size of lathe(L×W×H)		1900×760×1460mm	1900×760×1480mm
Net Weight		875kg(1925ibs)	875kg(1925ibs)
Gross Weight		960kg(2112ibs)	1090kg(2112ibs)

Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
