Curtain Wall Decoration Aluminum Composite Panel ACP/Acm

Product Description

Company Information:
Henan Jixiang Industry Co., Ltd is located in Zhengzhou City,Henan Province.
It is a professional company manufacturing high and new-tech aluminum composite products,which is one of the earliest manufacturers of aluminum composite in China.

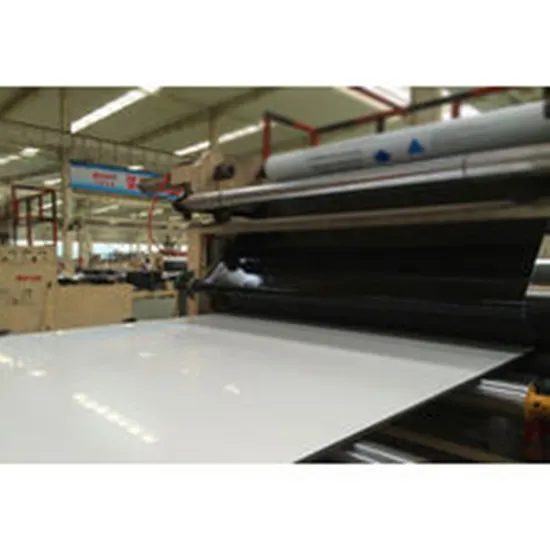

Our company possesses 24 production lines and 6 coating lines for aluminum composite panels whose annual output is 5.8million square meters.
In addition, our company has passed ISO9001 International Quality Management System Certification, ISO14000 Environment Management System Certification, OHSAS18000 Occupation Health Safety Management System Certification, and CTC Product Quality Certification, and won several national patents.

Product information:
Aluminum composite panel is made of aluminum alloy and plastic material to feature great hardness, light weight and smooth service, provided with wide range of sizes, shapes, colors, and styles to offer broader options for construction design, in a bid to better meet the requirements of contemporary construction on lightweight, elegant decoration and high hardness
Aluminum composite panel is widely used in all kinds of architectural decorations for its excellent properties, such as the, cladding, shops front, ceiling, counters, furniture, road signs, billboards, kiosks, elevators, stores.


Product range:

Surface Coating	Polyester Coating
Aluminum Alloy	AA1100, AA3003
Aluminum Skin	0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.30mm
Panel Thickness	2mm,3mm,4mm,5mm
Core Material	Non-toxic low density polyethylene
Panel Width	1000mm,1220mm,1250mm,1500,
Panel Length	2440mm,3050mm,4000mm,5000mm
Back Coat	PE coating, Primer Coating ,Mill finish

Products tolerance:

Panel Width	±2mm
Panel Length	±3mm
Panel Thickness	±0.2mm
Panel Diagonal	≤ 5mm
Aluminum layer thickness	±0.02mm

Technical data:

Description	Test standard	Polyester
Coating Thickness (μm)	Polyester paint >=16μm	16μm to 18μm
Coating flexibility (T-bend)	Polyester paint ≤ 3T	≤ 3T
Color different	ΔE<=2.0 (follow color sample)	ΔE<=2.0
Pencil hardness	>=HB	>=2H
Chemical resistance	2%HCI or 2%NaOH test in 24 hours -No change	No change
Coating adhesion	>=1grade for 10810mm2 gridding test	1grade
Resist solvent	100 times without change	No change
Boiling water resistance	2 hours without change	No change
Peeling strength/stripping strength	Average >=5N/mm of 180oc peel off for panel with 0.21mm alu.skin	5N/mm
Impact test for paint	20KG.cm impact-paint no split for panel	No split
Abrasion resistance (L/Mil)	NIL	NIL
Temperature resistance	-40ºC to +80ºC temperature without change of color difference and paint peel off, peeling strength average dropprate<=10%	Change of glossy only, no paint
		Peel off
Coefficient of linear Thermal Expansion	100ºC temperature difference	2.4mm/n
Detergent resistance (3%)	ASTM D2248	No change
Humidity Resistance (3000hrs,100%RH,100°F)	ASTM D2247	No change
Salt spray resistance (3000hrs,5% salt)	ASTM B117	No change
Resistance to Staining	600h radiate in 800W/M2 in humidity condition ,glossiness deviation less grade 2,color difference <=4.0	No change

Qurality certificate:

Exhibition &Customer:

Our products are accepted by markets widely with good performances and brand image, which are sold around China and in more than 20 countries and regions, such as Southeast Asia, Africa, Australia, America, and Brazil.

Why choose us:
Scale : 24 advanced composite production lines and 6 aluminum coil coating lines Quality: strictly comply with international standards and passed ISO,SGS,CE,Rohs certificate etc. Experience : Founded in 1999, rich production experiences in aluminum composite panel and well-known brand in China market. Lead Time: Absolute scale and experiences advantages ensure a quality guaranteed order fast delivered to our customers. Superior ability of OEM Service. Multiple specs and colors for your choices, and customized color acceptable.

---
