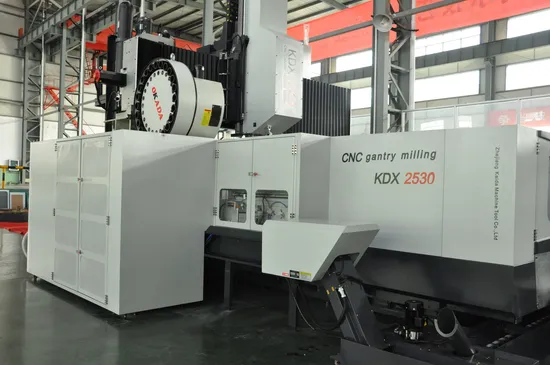

High Precision Gantry Machining Center with Bt50 Spindle Bore Taper

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
KDX 2550
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
2300*5000
Spindle Bore Taper
Bt50
Main Motor
18.5/22kw
Max. Table Loading
15t
Controls
Fanuc or Siemens
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
10 Sets/Year

Product Description


ITEMS KDX2530 KDX2540 KDX2550

Table

Tablesize		 2300× 3000mm 2300× 4000mm 2300× 4000m

Dragon Gate width		 2700mm

Max. table load		 8T 12T 15T

T-slot(width× number× space)		 11× 28× 200 N-mm-mm

Capacity range

Move around the table travel(X)		 3000mm 4000mm 5000mm

Move around spindle slide travel(Y)		 2500mm

Spindle travel up and down(Z)		 1000mm

Spindle nose to table surface		 150-1150mm

Spindle

Taper bore of spindle		 BT50/Φ 190

Spindle speed		 4000 rpm

Main motor power		 18.5 /22KW

Feel

X, Y, Z motor torque		 30, 22, 30Nm 60, 30, 30Nm 60, 30, 30Nm

Cutting feed speed range		 10-5000mm/min

Fast moving speed

X axis		 12 m/min

Y axis		 12 m/min

Z axis		 12 m/min

Repeatability(JB6086-92)		 ± 0.003mm

X axis		 ≤ 0.025mm

Y axis		 ≤ 0.025mm

Z axis		 ≤ 0.025mm

Other

Net weight		 45T 50T 55T

CNC System		 FANUC
