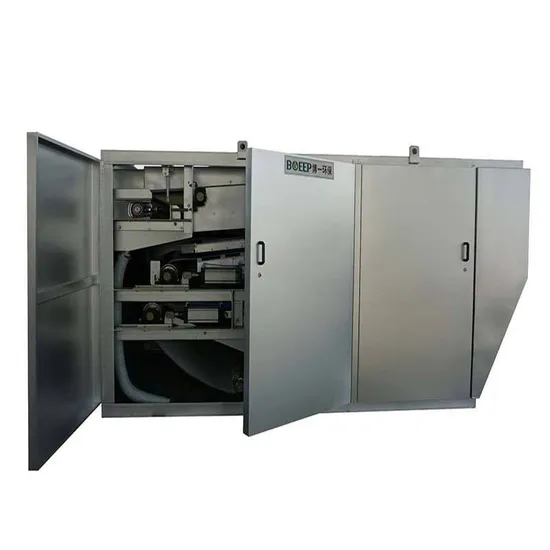

Mechanical Stainless Steel Belt Filter Press Dewatering Treatment Device for Municipal Waste Water Treatment Plant

Product Description

Why Choose Us Product Description BOEEP high duty type belt filter sludge dewatering device is mainly used for processing the sludge which is not concentrated in the thickening pool (such as A/O residual sludge). It has two functions: concentration and dewatering. Compared with the traditional gravity belt filter press, this equipment can meet the requirement of larger treatment capacity and lower sludge cake moisture content, by means of multiple press roll and high-pressure roll structure design. Meanwhile the outside door structure makes the system fully closed, maintenance expediently. Product Features 1- The action of the filter belt correction device is flexible and reliable. When the filter belt deviates from the center 15mm (operation can be adjusted according to the actual operation), the filter tape correction device works automatically, and the strainer is not more than 30mm in the operation, which can be adjusted according to the actual operation condition. 2- The dehydrator has a washing system, and the flushing device is composed of a spray pipe and a nozzle. The spray range covers the width of the filter belt, and each nozzle can be replaced. The flushing device has good sealing property, and it is not allowed to splash water and wet mud cake. And equipped with backwash filter for easy maintenance and cleaning. 3- The filter belt is made of polyester monofilament, which has the characteristics of high strength, corrosion resistance, good permeability, easy to block, smooth surface and high solid recovery rate. 4- The empty load test of the dehydrator meets the requirements of 6.16 of JB/T8102-1999, and the load test meets the requirements of JB/T8102-1999 6.17. Product Details

Model			DNYF1	DNYF1.5	DNYF2.0	DNYF2.5	DNYF3.0	Remark
Belt width(mm)			1000	1500	2000	2500	3000
Capacity(m3/h), Inlet concentration(S.S.0.8-1.5%)			10-20	15-30	25-40	35-50	40-60	Depending on the characteristic of sludge
Sludge cake moisture content(%)			70-85	70-85	70-85	75-85	75-85
Motor power(kw)	Driving motor(frequency control)	1.5	1.5	2.2	2.2	3.0
		Belt thickening motor(frequency control)	0.75	0.75	1.1	1.1	1.1
		Agitator motor	0.75	0.75	1.1	1.1	1.1
Lower collecting tray for filtrate			NO	NO	NO	NO	NO
External dimension(mm)	L	3850	3850	4500	4500	4500	Please ask for the actual installation sizedrawing before purchasing
		W	1580	2080	2580	3080		3580
		H	2090	2090	2590	2590		2590
Base dimension L1*W1(mm)			2920*1340	2920*1840	3450*2240	3450*2760	3450*3260
Base dimension L2*W2(mm)			750*750	800*800	960*960	1210*1210	1210*1210
Reference weight(kg)			3500	4200	6900	7800	9500

Production Site Project Site About Us FAQ Q: Are you trading company or manufacture?
A: We are both manufacture and trading company. We have over 20 years' professional experience as a waste water treatment equipment manufacturer and engineering service enterprise.

Q: Where is your factory located?
A: Yangzhou City, which is very close to Shanghai with only less than 3 hours' driving.
Q: Do you provide OEM service?
A: Yes. Any required logos is available.
Q: How about the production capacity of your company?
A: Our factory covers area over 20,000M2 and produces machines 2000 sets per year.
Q: How could we trust you and your company? This is first time transaction?
A: Our company has more than 20 years professional experience. We cooperate over 1000 customers in China and overseas. We export nearly 40 countries all over the world. Welcome to our company and watch our plant production condition any time.
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
Q: What kind of transportation do you offer?
A: Customers decide freight mode, Air, Land & Sea

---
