16 Wire Full Function USB 3.2 Gen 2 USB Bulk Cable for USB C to USB a 3.2 Cable Od 6.0mm

Product Description

16 Wire Full Function USB 3.2 GEN 2 USB Bulk Cable 20Gbps OD for usb c to usb a 3.2 cable 4.1-6.0 Optional
16C (8×30AWG+1P×33AWG+4×34AWG+2×25AWG)

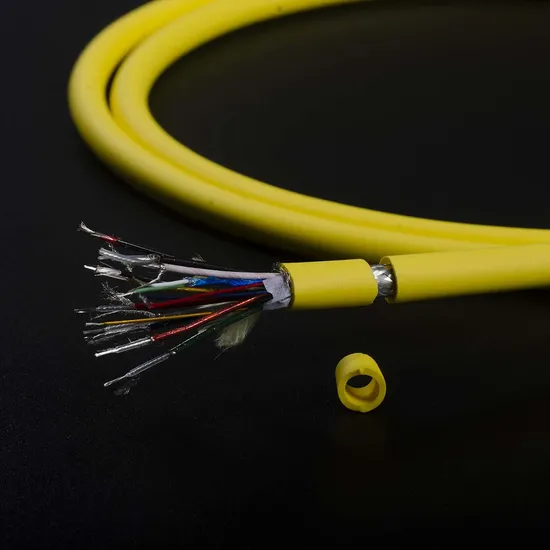

This 16 Wire USB Bulk cable is intended for full function USB 3.2 GEN 2 USB Cable Assembly,which can max achieve 20Gbps data transfer speed.It adopts Multi coax structure and silver copper conductor,which make the cable feels flexible and durable. We can use Medical grade Jacket material to make it suitable for Medical application (such as Medical TPU,Medical Silicone rubber).
We NOT ONLY provide USB bulk cable extruding service,also provide USB 3.2 GEN 2 cable assembly service
As a USB Cable manufacturer,we have many connector shape for option,and faster design and prototype.

Specification

tem

Unit

Specified Value

30AWG Coaxial

33AWG Wire

34AWG Wire

23AWG Wire

Number of cores

-

8C

1P

4C

2

Conductor

Material

-

Silver plated Copper wire

Tinned copper

Tinned copper

Tinned copper

Stranding

No./mm

7/0.102

7/0.07

19/0.04

37/0.08

Diameter(Nom.)

mm

0.306

0.210

0.200

0.675

Insulation

Material

-

FEP

FEP

FEP

FEP

Thick.(Nom.)

mm

0.242

0.140

0.06

0.10

Diameter

mm

0.79 (±0.02)

0.490 (±0.04)

0.40 (±0.02)

0.760 (±0.05)

Color

-

N

White,Green

Red,Black

Assembly Diameter 1(Nom.)

1.0

See Fig.3

Shield

Material

-

Tinned copper wire

-

-

Thicknes(Nom)

mm

0.05

Dia.(approx.)

mm

0.890

Shield Tape

Material

-

CUJ-PET

AL-PET

CUJ-PET

Thick.(Nom.)

mm

0.012

0.02

0.008

Diameter

mm

0.907

1.04

0.416

Sheath Tape

Material

-

PET-A

PET-A

PET-A

Thick.(Nom.)

mm

0.018

0.012

0.008

Diameter

mm

0.945

1.06

0.432

Color

-

See Fig.3

Blue

See Fig.3

Assembly Diameter 2(Nom.)

3.67

Tape

Material

-

Paper

Thick.(Nom.)

mm

0.10

Diameter

mm

3.87

Outer Shield

Material

mm

Tinned copper wire

Strand

mm

16/13/0.06

Coverage(Min)

mm

82%

Dia.(approx.)

-

4.00

Jacket

Material

-

Customer provided

Thickness (Nom.)

mm

0.90

Color

-

Yellow(custom color available)

Dia.(approx.)

mm

6.0±0.20
