Automatic LDPE/LLDPE Plastic Film Blowing Machine Double Winders PE Extruder Blowing Film Machine ABA Rotary Die Head Extruder Machine

Product Description

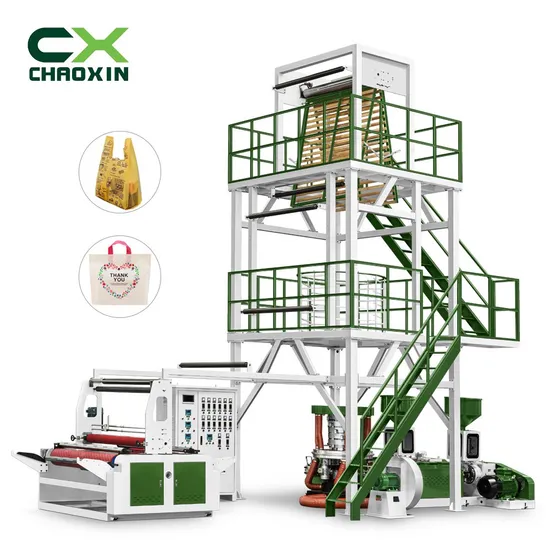

CX-ABA-900 LDPE Film Blown Machine
Product Description

Description :
Applicable for the materials as LDPE, LLDPE. It is widely used to manufactuer composite film basic material, liquid film, contractive film, protective film, multi-functional industrial film products,can better meet operational requirements of high accuracy and high speed color printing, composite and painting products. Main usage :This product can be applied to make all kinds of fresh fruits, meats, salt vegetables, fresh milk, drink and types for T-shirt bags, shopping bags, disposable bags, etc.

Main Specification
Model	CX-ABA-900
Material	LDPE,LLDPE
Max. Film width(mm)	800mm
Film thickness (mm)	0.02-0.20mm
Pinch roller width(mm)	900mm
Max. extrusion output	120kg/hr
Screw Diameter	φ50*2
L/D	30:1
Main power (kw)	15kw*2
Voltage	380v,50hz,3phase
Cover dimension	6*3*5.8m
Weight	3T

Detailed Photos
4 Grade,horizontal type Rational speed 1400rmp CE certificate, ISO Standard Guarantee period three year Standard voltage supply:380V,50HZ, 3 phase Custom produce voltage supply:220V, 60HZ, 3phase/ 415 or 440v, 50HZ, 3 phase
Hard tooth , high strength , oil pump water cooling type Gear Material:20CRMNTI, gearbox material:HT25 Gear accuracy : 6 grade Hardness:HRC58-62 Bearing: ZHJ and DYZV first class brand from China Oil sealer: TTO brand from Taiwan, China Ration speed: 1:10 Guarantee period three year

Raw material: Double Alloy ,CX design ,we have a patent ,good hardness ,wear resistance ,long life Nitriding depth:0.8mm Nitriding hardness: 1000HV Chromed hardness >=950HV Chromed thickness:0.08mm Chaoxin design screw and barrel Plastify excellence and fast, to blow film smoothly and glossiness CE certification and ISO standard
Raw material Ceramic heating ring has excellent insulation effect. Composed by die core, die body , die ring and heating ring Forging and heat treating, much higher strength and toughness than normal type die head Machining center is from Taiwan, so the die head is higher accuracy Keep Film thickness average and equal , and film quality is shining. Custom produce, according to different type raw material , supply different design die head.
LDPE two vent air ring ABA type Raw material: aluminum Compact structure to increase the discharge of air . Equal air discharge to make the film cooling faster and film bubble stable, no moving, to get final product flat.
Use horizontal 5 roller traction created by Chaoxin Traction rubber roller made of polyurethane material (long life, not easy to leak) Embossing roller:Computer engraving molding, clear lines and hand feeling well Steel roller:Full section chrome plating, long life, not easy to rust Traction:Equipped with a flattening roller, can make the film higher flatness, not easy to wrinkle Motor:Frequency control, stable speed, low energy consumption Plate:Mahogany material, to static electricity does not scratch
1.Double winder type
2.One roller take by manual
3. Torque motor to control the film rewinding speed and tightness, to make the film rewinding flat.
Production process

Company Profile
Zhejiang Chaoxin Machinery Technology Co.,Ltd is a professional manufacturer of film blowing machines(100% biodegradable film blowing machine,three layers co-extrusion film blowing machine, ABA film blowing machine) priting machine and bag making machine.With many years of mechianical design and manufacturing experiences,the company insist the business philosophy of "people-oriented","technology development","integrity management","best quality
","6S management"," best after sales service" and "customer satisfaction".Not only has advanced processing workshop and quality inspection standards.Obtained the ISO9001:2015 quality management system certification issued by Hartfor Global Standard Certification Co.,Ltd., CE certification and successively won the advanced unit of high-tech enterprises in Pingyang County in 2018, 2019, 2020 and 2021. We provide lifetime maintenance for all products sold. Provide customers with economical and convenient budget solutions. Chaoxin Machinery is willing to make a good cooperation with the friends from all over the world and make a great achievement together.

Our factory
Exihibition
Shipping
FAQ
Q1:Are you a factory or trading company? A1: We are a actual factory and manufacturer of film blowing machine,printing machine and bag making machine.Q2:Where is your factory located? How can I visit there? A2: Our factory is located in Pingyang,Wenzhou city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!Q3: Which industries are widely used in of your machine?A3: Those are mainly used in making plastic and full biodegardable bags in the maket. Examples of T-shirt bag,flat bag,poop bag,rolling garbage bags,agriculture films etc.Q4: How about the payment term?A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.Q5: What about your main market?A5: Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.Q6: How does your factory do regarding quality control?A6: Quality is the most important principle. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.Q7:What about warranty and do the engineers available to overseas?A7: Three years warranty. During this period, if the main part has some problems, we will send a new one to you for free. Q8:What about the service after sale?A8: Once you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines life time. We will reply to you within 24 hours and help you to slove the problem.

---
