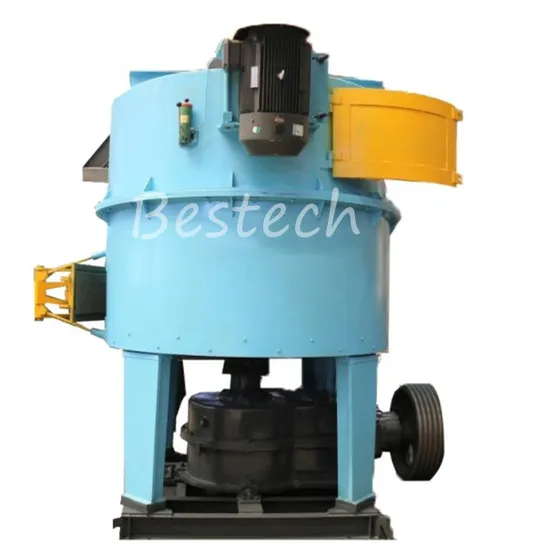

GS High Efficiency Rotor Sand Mixer Green Sand Molding Plant

US$3,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GS
Application
Sand Mixer
Application Area
Metallurgy&Mineral
Certification
CE
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Spiral
Warranty
1 year
Working
High Speed Mixer
Name
Rotor Sand Mixer
Color
Customzied
Type of Sand
Green Sand/Clay Sand
Use
Foundry Industrial
Mixer Type
Powder Mixer
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Wooden Box or According to Your Requirement
Specification
CE
Trademark
bestech
Origin
Qingdao
HS Code
8474390000
Production Capacity
100 Sets Per Month

Product Description

GS series high efficiency rotor type sand mixer/sand mixing machine1.Application of GS High efficiency rotor sand mixer :This machine is mainly used for mixing molding sand in foundry workshops, that is, single sand for machine modeling, dry film sand, self-hardening sand, face sand and back sand, and it can also be used for glass, ceramics and refractory. Materials and other industries to mix all kinds of powder and granular materials.2.Features of gs high efficiency Rotor Sand Mixer:(1)Double "s" scraper is optimally matched with high-speed rake rotor, with large amount of sand mixing, strong mixing ability and good sand performance.(2)New materials such as alumina wear-resistant ceramic backing plate, alloy knife block surfacing scraper, etc., have improved the life of wearing parts.(3)soft-start, alloy steel gear, lubrication control machine, ensure smooth and reliable transmission system, and can start under load.(4)Symmetrically opened access doors for easy maintenance and cleaning(5)The latest type of side discharge door opens flexibly and works reliably, completely solving the problem of sand leakage at the bottom.
GS series high efficiency rotor sand mixer is designed and manufactured by referring to the advanced experience of sand mixer at home and abroad. It adopts double S type agitator and high speed rotor to rotate in the opposite direction, while the guide plate is stationary.Qingao bestech machinery specialized in foudry machine for many years and our company have mature technology,if any requirement please feel free to contact us.
GS high efficiency rotor sand mixer with Low speed scraper and medium speed rotor are best matched, the sand mixing capacity is large, the sand mixing ability is strong, the sand comprehensive performance is good.
GS series high efficiency rotor type sand mixer/sand mixing machine
GS series high efficiency rotor sand mixer is designed and manufactured by referring to the advanced experience of sand mixer at home and abroad. It adopts double S type agitator and high speed rotor to rotate in the opposite direction, while the guide plate is stationary.Qingao bestech machinery specialized in foudry machine for many years and our company have mature technology,if any requirement please feel free to contact us.
GS high efficiency rotor sand mixer with Low speed scraper and medium speed rotor are best matched, the sand mixing capacity is large, the sand mixing ability is strong, the sand comprehensive performance is good.
GS series high efficiency rotor type sand mixer/sand mixing machine

Model
GS20-55
GS20-75
GS22-75
GS22-90
GS25-110
GS25-132
GS29-200
Name
sand mixer
sand mixer
sand mixer
sand mixer
sand mixer
sand mixer
sand mixer
(mm)
Disk diameter
2000
2000
2240
2240
2500
2500
2850
(t/h)
Capacity
20~28
25~32
30~35
35~40
40~50
50~60
60~80
(KW)Main motor power
55
75
75
90
110
132
200
(KW)Rotor motor power
2×30
2×37
2×45
2×45
2×45
2×55
2×55
(r/min) Main shaft speed
31.72
31.72
27.32
27.32
27.3
27.32
25.4
(r/min)Rotor speed
1270
1270
975
975
950
950
850



FAQ:
Q: What is the capacity of this sand mixer?
A: 20-80 t/h

Q: Where does your company located?
A: Qingdao of China
