PDA Device Contact IC NFC Msr Card Payment ATM Security Pinpad Z90pd

Product Description

Contact IC NFC MSR Card Payment ATM Security Pinpad Z90PD Introduction

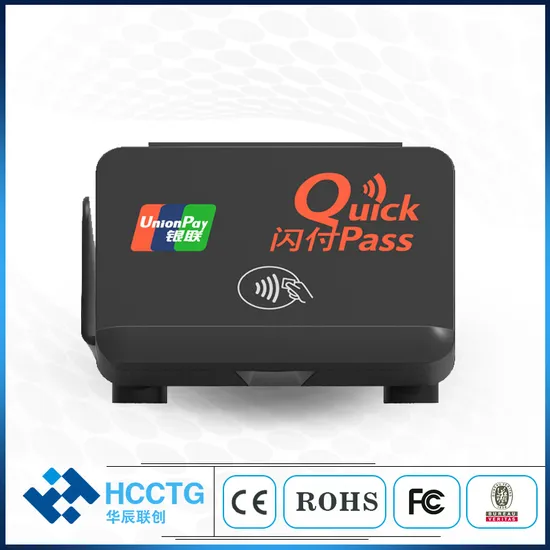

Z90PD is an All-In-One desktop PIN-pad reader that combines contact smart card, magnetic stripe and contactless technologies. It has LED indicators, 128 x 64 high-resolution graphical LCD, buzzer. Z90PD has passed the PBOC3.0 L1 and qPBOC3.0 L1. It can be applied in banking, transportation, healthcare, government and retail sector.
Features
128×64 dot-matrix LCD, support backlight 4 LED status indicators 17-key keypad 1 or 2 slots for full-size smart card reader/writer compliance with ISO/IEC 7816 Contactless card reader/writer compliance with ISO/IEC 14443 part 1-4 Configurable 1 to 4 SAM slots Magnetic Stripe Support RS232 interface USB full speed H-ID Compliance Support buzzer Support firmware upgrade Optional external privacy shield Certifications PBOC 3.0 L1 qPBOC 3.0 L1 Detailed Photos
Product Parameters

Physical Specifications
Case Color	Black or Grey
Weight	310g
Memory
Memory	2 KB Flash
Power
Power Source	Battery
Supply Voltage	5 V DC
Supply Current	Max. 500 mA
USB Interface
Type	Type A, USB full speed
Power Source	From USB
Speed	12 Mbps
Firmware	Upgradable through USB interface
Interface Class	H-ID compliance
Cable Length	1.5 m fixed cable
Contactless Smart Card Interface
Standard	ISO-14443 A & B part 1-4
Protocol	Mifare® Classic Protocols, T=CL
Smart Card Read /Write Speed	106 kbps
Operating Distance	Up to 40 mm
Operating Frequency	13.56 MHz
Contact Smart Card Interface
Number of Slots	1 or 2 ID-1 Slots
Standard	ISO/IEC 7816 Class A, B, C (5V, 3V, 1.8V)
Protocol	T=0; T=1
Supply Current	Max. 50 mA
Short Circuit Protection	(+5) V /GND on all pins
Card Connector Type	ICC Slot 0: Landing
Smart Card Read /Write Speed	9,600-115,200 bps
Card Insertion Cycles	Min. 200,000
SAM Card Interface
Number of Slots	4 ID-000 slots
Card Connector Type	Contact
Standard	ISO/IEC 7816 Class B (3V)
Protocol	T=0; T=1
Smart Card Read /Write Speed	9,600-115,200 bps
Magnetic Stripe Card Interface
Standard	ISO 7811
	Track 1/2/3, Bi-directional
Reading	Supported
Built-in Peripherals
Keypad	17 keys
LCD Display	128×64 dot-matrix LCD display with backlight\
Buzzer	Monotone
LED Status Indicators	4 LEDs for indicating status (from left most: blue, yellow, green, red)
PIN-pad Encryption
Algorithm	DES/3DES
Standard	X9.8, X9.9
Operating Conditions
Temperature	0°C - 50°C
Humidity	5% to 93%, non-condensing
Certifications/Compliance	ISO/IEC 7816, ISO/IEC 14443, qPBOC Level 1, qPBOC Level 2
Supported Operating Systems	Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®

Company Profile Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of POS & POS Peripheral Products. We are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our factory have obtained ISO9001 certificates in 10 year, production department is over 3,000 SQM. Our products sell well in all cities and provinces around China, and also exported to clients over 100 foreign countries and regions. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Certifications
Packaging & Shipping
After Sales Service

FAQ 1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution since 2008. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;

---
