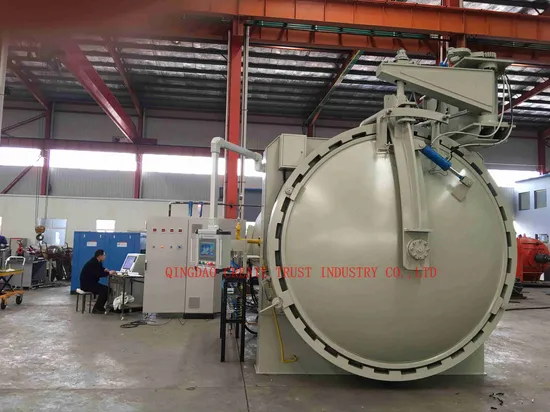

China Top Quality Autoclave for Composite Material Processing/Carbon Fiber (CE/ASME)

Product Description

Model No.: CX1700
Name : Autoclave,Autoclave for Composite/carbon firber matrerial ,composite oven,Composite autoclave, Composite material autoclave,Carbon fiber autoclave,Composite high pressure vessel.
Usage :
The autoclave is mainly used to process composite material,carbon fiber .It with high pressure and vacuum system,full automatic control system. All process technology will be storage by the computer.
The autoclave is designed for Polymer matrix composite component products Molding.
The technology is "use vacuum bag to seal black composite material,honeycomb sandwich
Structure,or bonded structure on the mould.
Then place it into the autoclave. In the condition of vacuum (or antivacuum),during temperature increasing, pressure increaseing, heat preservation (Medium temperature or high temperature), pressure maintaining, temperature and pressure relief, then finally gain the quality products.

FEATURES
1-Heating method : electric heating.

2-Door open and close system :

One person can open or close the door easily,this is high technical . even the door can be operated when power off.

3-Seal system :

Inflatable silicon rubber seal. Automatic inflate during working.

4-Safety interlocking for the door

We design three sets safety locking system to avoide the damage for the worker 's faulty operation.

First is pressure automatic safety locking system:
Second is manual safety locking system
Third is seals safety locking system

5-Temperature control system :

We design Intelligent digital temperature controller to set and control temperature. .Precision is ±.0.5ºC .

6- Pressure control system:

Automatic contrtol for temperature by pressure sensor, the autoclave has keep the setting pressure steady and automaticly.

7- Insulation method :

We design cold-rolled sheet to fix the machine,and inside 60mm glass cotton to cover the machine. This will save costs for heating .

Parameters below :

Item	800	1200	1500	1700	2000	2600
Inner diameter(mm)	800	1200	1500	1700	2000	2600
Canister length(mm)	22000	3000	3000	4000	5000	10000
Number of lid sawtooth	12	12	14	14	16	24
thickness of lid (mm)	10	10	10	10	16	14
Thickness of the tank body(mm)	10	10	10	10	12	14
Working pressure(Mpa)	0.8	0.8	0.8	0.8	0.8	0.55
Dimensions(mm) (length*width*height)	22766*1445 *1170	4010*1575 *1670	3960*2150 *2050	4925*2162 *2070	6200*2590 *2424	11722*3360 *4136
Weight(Kg)	5580	2017	2950	3835	6500	16775

Service of us :
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !

---
