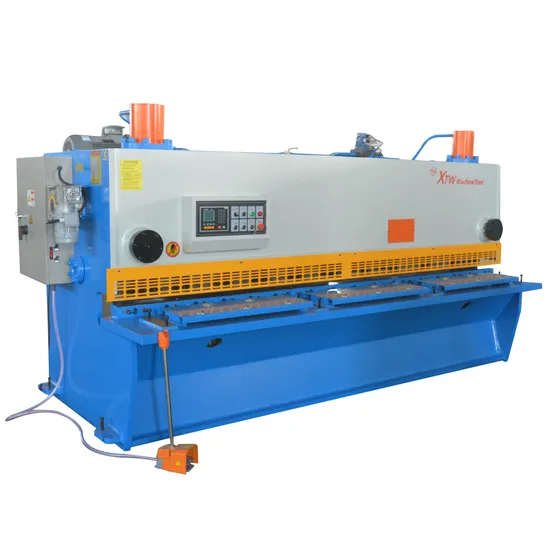

Hydraulic Metal Shearing Machine Shearing Machine QC11y-6X3200 Guillotine Shears for Sale

Product Description

Hydraulic Metal Shearing Machine Shearing Machine QC11Y-6X3200 Guillotine Shears For Sale Guillotine Shear Definition: A hydraulically operated cutting device that consists of a horizontallyoriented fixed lower blade and a horizontally-oriented moving upper blade that travels in vertical guide channels. May include a hydraulically-operated hopper that compresses the material to be sheared
Featured:
1.Premium shear machine with Delem CNC control(Optional) Normally Equipped Estun E21S.
2.Unique blade design allows for 4 different cutting tools on one blade.
3.Significantly longer working life than other machines.
4.High speed of backgauge of up to 250mm/s, and stoke of up to 1000mm/s.(Optional Servo Motor Driven Backgauge)
Product Parameters

Specification	Shearing Thickness(mm)	Shearing Width(mm)	Backgauge Range(mm)	Shearing Angle(Degree)	Height of working table(mm)	Main Power(kw)
QC11Y/K-6X2500	6	2500	20-600	30°-1°30'	800	7.5
QC11Y/K-6X3200	6	3200	20-600	30°-1°30'	800	7.5
QC11Y/K-6X4000	6	4000	20-600	30°-1°30'	800	7.5
QC11Y/K-6X5000	6	5000	20-800	30°-1°30'	850	11
QC11Y/K-8X2500	8	2500	20-600	30°-1°30'	800	11
QC11Y/K-8X3200	8	3200	20-600	30°-2°	850	11
QC11Y/K-8X4000	8	4000	20-600	30°-2°	900	11
QC11Y/K-8X5000	8	5000	20-800	30°-2°	1000	15
QC11Y/K-8X6000	8	6000	20-800	30°-2°	1050	15
QC11Y/K-12X2500	12	2500	20-600	30°-2°	840	15
QC11Y/K-12X3200	12	3200	20-600	30°-2°	900	18.5
QC11Y/K-12X4000	12	4000	20-800	30°-2°	940	18.5
QC11Y/K-12X5000	12	5000	20-1000	30°-2°	1000	22
QC11Y/K-12X6000	12	6000	20-1000	30°-2°	1060	30
QC11Y/K-16X2500	16	2500	20-600	30°-2°30'	840	22
QC11Y/K-16X3200	16	3200	20-600	30°-2°30'	900	22
QC11Y/K-16X4000	16	4000	20-800	30°-2°30'	940	22
QC11Y/K-16X5000	16	5000	20-1000	30°-2°30'	1000	30
QC11Y/K-16X6000	16	6000	20-1000	30°-2°30'	1100	37
QC11Y/K-20X2500	20	2500	20-600	30°-3°	900	30
QC11Y/K-20X3200	20	3200	20-600	30°-3°	950	30
QC11Y/K-20X4000	20	4000	20-800	30°-3°	1100	30
QC11Y/K-20X5000	20	5000	20-1000	30°-3°	1100	37
QC11Y/K-20X6000	20	6000	20-1000	30°-3°	1200	37
QC11Y/K-25X2500	25	2500	20-600	30°-3°30'	900	37
QC11Y/K-25X3200	25	3200	20-600	30°-3°30'	950	37
QC11Y/K-25X4000	25	4000	20-800	30°-3°30'	1100	37
QC11Y/K-32X2500	32	2500	20-600	30°-4°	1000	55
QC11Y/K-32X3200	32	3200	20-600	30°-4°	1100	55
QC11Y/K-40X2500	40	2500	20-600	30°-4°	1200	55
QC11Y/K-40X3200	40	3200	20-1000	30°-4°	1200	55
QC11Y/K-50X3200	50	3200	20-1000	30°-4°	1200	90

Detailed Photos
Packaging & Shipping NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Located in the eastern part of the Central Jiangsu Plain, "the hometown of Chinese shearing, folding and rolling machine tools" - Haian Libao. It is adjacent to the Yellow Sea in the east, the Yangtze River in the south, Xinchang Railway in the west, and close to the 204 and 328 national highways. The company was formerly known as "the original Haian County Haiwei Machine Tool Factory." Specializing in the production of "Tongwei" brand series of shearing machines, bending machines, rolling machines, leveling machines, slitting machines, uncoiling and leveling production lines and other sheet metal processing equipment .The company has a group of professionals who have been engaged in forging design for a long time. Through the strong alliance with various casting and forging research institutes and major technical research institutes, the product structure is continuously improved, and the application of new technologies is in a leading position in the same industry. , so that the performance of the whole machine reaches the international advanced level, and it is an ideal substitute for imported machine tools. In the past few years, the company has developed a number of new structures and new technologies, and applied for a number of patents. The products have passed the provincial and municipal quality and technical supervision and inspections for many times, and have won the honorary title of "Contract-honoring and Promise-keeping" enterprises. The company's products are widely used and sold throughout the country and exported to Southeast Asia, West Asia, Africa, and Russia in recent years. And other European countries, have a place in the European and American markets. The company adheres to the tenet of "Quality First. Service First. Reputation First", takes customer satisfaction as the operating principle, and insists on providing customers with thoughtful pre-sale, in-sale, and after-sale services.

---
