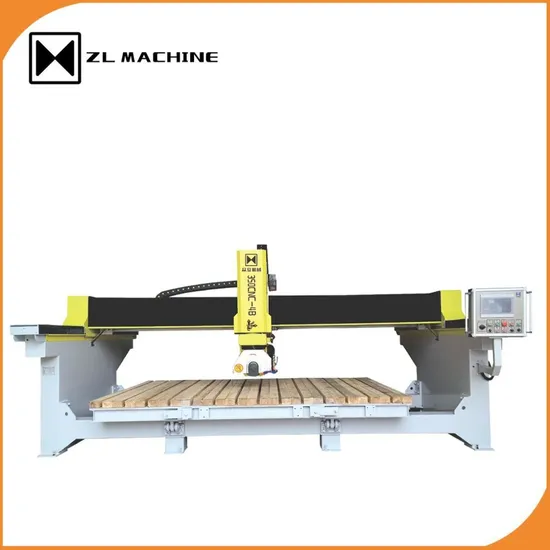

Zhongli 4 Axis Stone Bridge Saw Machine for Sale

Product Description

Product Parameters

Model	ZLBS-350CNC/4B	ZLBS-350CNC/4+1B
Worktable Size	3200mm X 2000mm	3200mm X 2000mm
Max Plate Cutting Size	3200mm X 2000mm X 65mm	3200mm X 2000mm X 65mm
Blade Diameter	300-350mm	300-350mm
Main Motor Power	15kw	15kw
Total Power	20.5kw	26.5kw
Dimensions	L5100mm X W3150mm X H2500mm	L5100mm X W3150mm X H2500mm
Water Consumption	2 m3/h	2 m3/h
Total Weight	3.8 Tons	4 Tons
Voltage	380V (Or Can be customized)	380V (Or Can be customized)
X-axis	X-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and planetary reducer. It ensure High-Speed and High-Efficiency Cutting.	X-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and planetary reducer. It ensure High-Speed and High-Efficiency Cutting.
Y-axis	Y-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and reducer. It has oil-immersed structure, long-lasting and durable.	Y-axis adopts 30 Linear Guide Rail, high-precision helical rack and gear, and reducer. It has oil-immersed structure, long-lasting and durable.
Z-axis	Z-axis adopts 30 Linear Guide Rail and Ball screw.	Z-axis adopts 30 Linear Guide Rail and Ball screw.
C-axis	C-axis adopts high-precision Robot Reducer. Its can rotate 0~360 ° to process various shapes.	C-axis adopts high-precision Robot Reducer. Its can rotate 0~360 ° to process various shapes.
A-axis	axis can rotate to 0°and 45° with the structure of "Cylinders+ Backer", which has good stability.	axis can rotate to 0°and 45° with the structure of "Cylinders+ Backer", which has good stability.
Control center	PLC System+ CNC module + servo drive The system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate.	PLC System+ CNC module + servo drive The system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate.
Electric Spindle	Not adopted	Rotation Speed: 24000rpm; 5.5kw Power, To put a milling cutter for milling work
Shipment	20 feet container	20 feet container
Price for sale	$10,000~$16,000

Product Description
4 Axis Bridge Saw (Type: ZLBS-350CNC) is a machine for Marble, Granite, Natural Stones, Quartz Stone etc. With a milling cutter(350CNC/4+1 B), it can mill basin holes, faucet holes, inner angle and shape lines. It is a multifunctional machine with the most advanced technology in the industry, with this machine, operators can finish one product without moving slabs.

Applications
This 4 Axis Bridge Saw Cutting Machine can Cut Circles, polygons, and do vertical Cut, inclined Cut(45°), Chamfering,Orthogonal Cuts,Transversal Cuts,Longitudinal Cuts, etc.
It has can perform Stone Milling(Optional Function) for Faucet Holes, Inner angles, and four-sided under-hung countertops.

Application Fields:
* Residential & Commercial Interiors
* Decorative wall panels
* Countertops/ Vanity Top /Kitchen Sink/ Bathrooms
* Worktops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
Features
Mono-Block Structure, taking less space, easy to install High Speed, High Precision Cutting. C-axis and A-axis use Robot Reducer, with High Quality and Good Performance. Strong Machine Structure with #30 Guide Rail for X.Y.Z axis. With a group of Rotating Cylinder to press workpieces during Milling work. (Specially designed by our factory) Automatic Oiling System, easy maintenance. Control system has a built-in drawing library of conventional shapes, supporting data input, is easy to learn and operate.



Packaging & Shipping
This model can be loaded into a 20 feet' Container.
Company Profile

https://world-port.made-in-china.com/viewVR?comId=DdSAqFuEbUlG&fbclid=IwZXh0bgNhZW0CMTEAAR1psWgfx1ebrQipGFIJjvhDm3fz8eemxLWH2ew6uL5mtqK24dwR3rgLnZg_aem_AYi9BWyI4Ex6TvfEzRDfN0AQrGmc2nrD0g9rn6yW_EZLZgkbGrrpRLtf-BLHzyBTcQKhxJt3U_xGZxa-FbtOrzLP
Certifications
ZL Machine's Honors come from its Strength and efforts. They represent our excellent development and unremitting efforts in stone machinery industry. We will transform every honor into continuous development and innovations again and again.

---
