Wood Based Panel Machine Plywood Trimming Saw Machine

US$6,500.00

1-4 Pieces

US$3,000.00

5+ Pieces

Basic Info.

Type

Plywood Machine

Automatic

Certification

CE, ISO, Plywood Machine

Precision

High Precision

Voltage

380V

Overall Size

8000*5000*1200mm

Weight

5000kg

Application

Wood Panel and Other Manufacturing Plant

Power

39kw

Model

Gtpm48

Long Saw Cutting Size

1830-2440mm

Lateral Saw Cutting Size

800-1220mm

Working Speed

10-30m/Min

Saw Blade Dimension

Diameter305mm,Inner Diameter25.4mm

Capacity

8-12PCS/Min

Working Style

Infrared Ray Guidance

Working Method

Full Automatic

Transport Package

Container

Specification

4*8

Trademark

GTCO

Origin

China

HS Code

84289090

Production Capacity

20 Set/ Month

Product Description

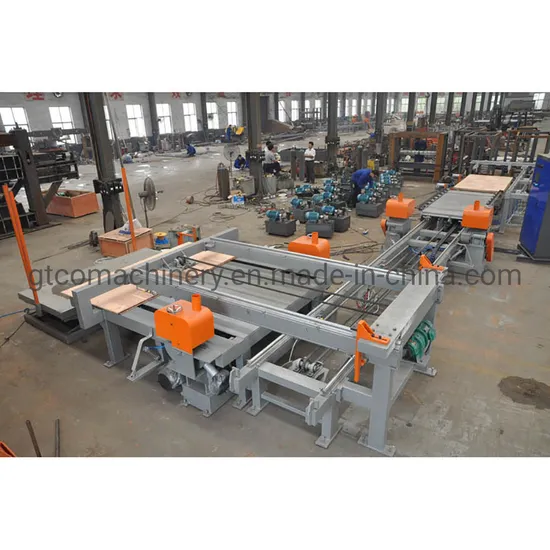

Product DescriptionPlywood edge trimming saw / panel saw/ edge cutting saw is the necesary and one of the most imortant machine during the plywood production process ,it cutting the rough said to the regular side as client request.Automatic edge trimming saw replance the old manual operation work way ,totally Automatic , save labor ,and btter work performance .

Strong structure The whole machine is made from suare iron 150x100mm . And double base bridge . total weight up to 7 tons .its strong enough ,and promise it wont out of shape during long work life
MODEL SIZE

Model	36	48
plywood size	3x6ft	4x8ft
plywood thickness	3-70mm	3-70mm
speed	300pcs/h	300pcs/h
power	42kw	48kw
Servo motor	2kwx2	2kwx2
saw head power	9kw	9kw
machine size	5.4mx5.4mx1.7m	5.8mx5.8mx1.7m
weight	6 tons	6 tons
