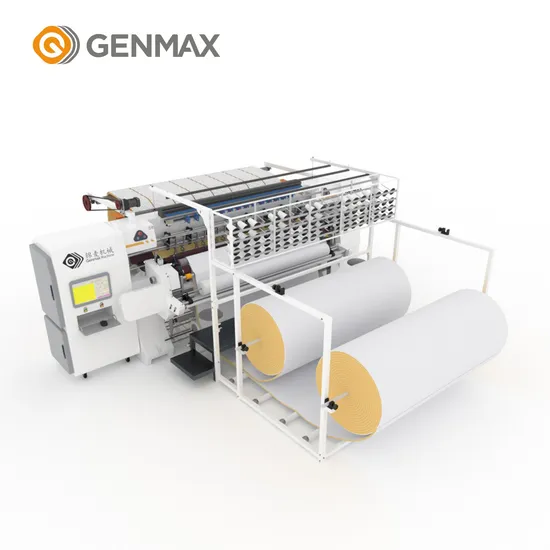

High Speed Computerized Chain Stitch Muilt-Needle Quilting Machine Mx4

Product Description

If you need more detailed information and other models, please email us. We will promptly reply to you.
Automatic lubrication system (that works on anti friction component, ball screw and linear guideway)enables labor saving and long life of the machine.
Optional: 0.5 inch needle distance. Capable of making more patterns.
Optional: slitting system. Precisely slitting after quilting for making mattress tape.
Larger diameter of main shaft and needle bar shaft ensures the stable performance during the machine working in high speed.
Japanese famous brand bearing and precise casting spare parts are used on the machine, which ensures long life of the machine.
Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
Delta VFD (variable-frequency driver) drives main shaft (Z shaft) and Panasoni servo driver & motor control the saddle (Xshaft) and roiler (Y shaft).
Both continuous patterns and Tack & Jump patterns (360° and 180° )are available.
Controiling system based on Windows, CAD drawing.
Automatic stop when the pre-set processing length is finished, which is saving labor and easy operation.
Automatic detection of machine running condition. Parameter

Model	MX4	Quilting Width	1650mm
Needle bar distance	(50.8,76.2,127)5'',(76.2,76.2,152.4)6''	Needle distance	12.7/25.4mm
X-axis movement displacement	308.4mm	Quilting thickness	≤60mm
Stitch Length	3-8mm	Capacity	60-230(m/hour)
Needle Type	24/180,23/160,22/140,21/130	Main shaft speed	1000(rpm)
Voltage	380V/220V 50Hz/60Hz, 3-Phase	Power	8Kw
Dimension(L xW x H)	5400X1650X2050mm	Weight	4500K

---
