US$150,000.00-200,000.00
|
1 Set
(MOQ)
|
Basic Info.
Forging Forming Method
Mold Forging
Certification
ISO9001, CE
Equipment Colour
Customized
Option
Film Applicator, Stick Paper Machine
Transport Package
Seaworthy
Specification
30m L X 10m W
Packaging & Delivery
Package Size
2800.00cm * 300.00cm * 200.00cm
Package Gross Weight
75000.000kg
Product Description

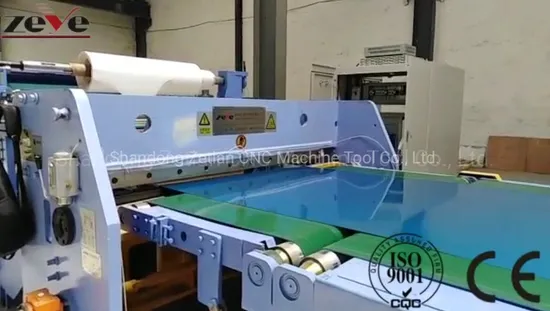

Cut to length line ZCL series
Cut to length line is mainly used for jobs like uncoiling, leveliing, measuring, cutting to length and stacking of kinds of materials, such as cold rolled or hot rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units
1 | Entry coil car | 1 set |
2 | Uncoiler | 1 set |
3 | Feeding device | 1 set |
4 | Precision leveler | 1 set |
5 | Looper | 1 set |
6 | Side guide | 2 sets |
7 | Servo measure the length | 1 set |
8 | Shear | 1 set |
9 | Conveyor belt | 1 set |
10 | Stacker | 1 set |
11 | Blower | 1 set |
12 | Exit coil car | 1 set |
13 | Hydraulic system | 1 set |
14 | Electrical system | 1 set |
Main Technical Parameters
Model | ZCL-1 | ZCL-2 | ZCL-3 | ZCL-4 |
Material thickness | 0.2-1.0mm | 0.3-2.0 mm | 0.4-3.0 mm | 0.5-4.0 mm |
Material width | 300-1250 mm | 300-1600 mm | 300-1800 mm | 300-1800 mm |
Finished length | 300-3000 mm | 300-3000 mm | 300-4000 mm | 400-6000 mm |
Length accuracy | <±0.3 mm | <±0.3 mm | <±0.3 mm | <±0.3 mm |
Diagonal accuracy | <±0.5 mm | <±0.5 mm | <±0.5 mm | <±0.5 mm |
Leveling accuracy | <1 mm/m2 | <1 mm/m2 | <1 mm/m2 | <1 mm/m2 |
Line speed | 70 m/min | 60 m/min | 60 m/min | 60 m/min |
Coil weight | 5,10,15 t | 10,15,20 t | 15,15,20 t | 20,25,30 t |
Our advantages
1. Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced
processing equipments. Which can ensure to produce out high precision parts.
2 Every part has been finished it's own complete technology process, such as forge, rough machined, heat treatment, cooling, burring, tempering, finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.
3.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified.
Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, SANDEN etc. famous companies.
Company introduction
Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian is for import and export business, ZeYe is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.
We have one professional technical team and after sales service team, we are ready to serve you at any time.
Welcome to visit our factory.
FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team, we can design and manufacture as your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.
Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .
>>
