Solid Carbide Circular Saw Blade for Metal Cutting 10% off

Product Description

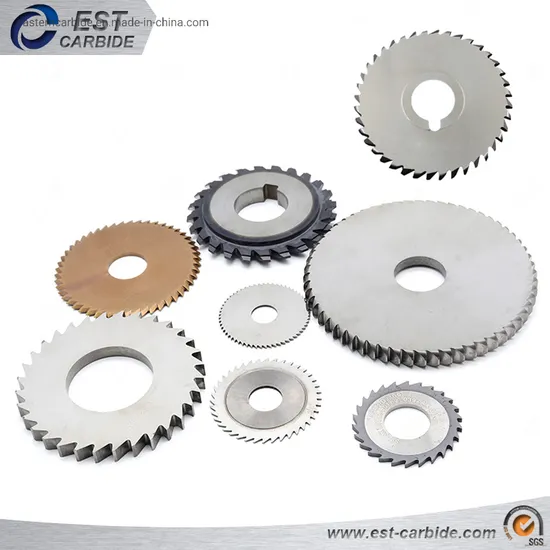

Solid carbide circular saw blade for metal cutting
Zhuzhou Eastern Carbide offers the wide range of circular saw blades, available in stock. With Eastern Carbide solid carbide circular saw blades according to DIN you achieve first-class results in slotting and cutting works. Our DIN solid carbide circular saw blades are suitable for steel > 1000 N, stainless steel, gray cast iron, aluminum, copper, copper alloy, zinc alloy, inconel, titanium, plastic and GRP/CRP. Our DIN solid carbide circular saw blades are available in diameters ranging from 15 mm to 200 mm and the minimum thickness we can do is 0.15 mm Our solid carbide circular saw blades according to DIN should only be used on stable and low-vibration machines (preferably milling machines). For steel machining, a particularly greasy cooling is recommended. In the case of machining of non-ferrous metals, spray lubrication can also be used. Gray cast iron and plastics can be machined dry. If this is respected, the cutting speed can be increased up to 4 times compared to HSS DIN circular saw blades and will save your cost, time and energy.
Grade & Specification

Regular grades for solid carbide circular saw blades
Grade	Cobalt	Density	Hardness	TRS	ISO equal grade		Remark
	%	g/cm3	HRA	MPa
ES016	11	14.3	92.2	3200	M10		Suitable for Stainless steel, high temperature and low temperature alloy, titanium alloy, low carbon steel and medium carbon steel
ES018	10	14.45	92	3500	K10
ES028	11	14.4	92	2800	M10
ES030	10	14.35	91.7	2500	M15
ES015	7	14.8	92.5	2700	K10		Suitable for Non-ferrous metals, cast iron, plastic, aluminum alloy & steering gear

Regular dimensions (Unit: mm)

Regular dimensions for solid carbide circular saw blades
OD40xT0.2~5 mm	OD50xT0.2~5 mm	OD60xT0.2~5 mm	OD63xT0.2~5 mm	OD70xT0.2~5 mm
OD75xT0.2~5 mm	OD80xT0.3~5 mm	OD90xT0.4~5 mm	OD100xT0.8~5 mm	OD110xT0.5~5 mm
OD125xT0.5~5 mm	OD150xT0.5~5 mm	OD160xT0.8~5 mm	OD160xT0.8~3 mm	OD200xT1~4 mm
Note: Following is our regular dimensions, we can do fast delivery for the saw blades in the list (Within 10 days). If you can't your dimensons in the list, please kindly contact us, we have rich experience and we can make the sircular saw blades according to your designs.

Quality Control System:
We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Packing:
A. Standard packing
1).Plastic boxes with foam inside and carton outside.
2).Paper boxes with foam inside and carton outside.
3).Inner boxes/packing material inside and plywood box outside (for heavy product).
B. Customized packing available: We can do special packing based on client's requirements..

---
