US$12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Guide Rail
Horizontal Guide Rail
Tool Holder

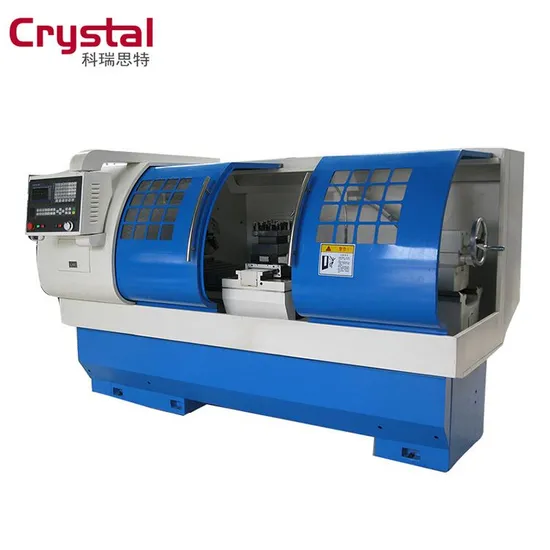

Single-tool Holder CNC Lathe
Automatic Grade
Semiautomatic
Max.Length of Work Piece
750mm
Range of Spindle Speed
100-2500rpm
Taper of Spindle Bore
Mt5
Stations of Tool Carrier
4
Packing Size (mm)
2570*1400*1650mm
Transport Package
Standard Wood Packing
Origin
Taian City, Shandong Province, China
Production Capacity
30sets/Month
Product Description
The currency exchange rate fluctuates greatly, please consult customer service for the best price.
Specifications
ITEMS |
Specifications |
Max. swim over bed |
Φ500mm |
Max. swim over carriage |
Φ280mm |
Max. length of work piece |
750mm |
Width of the machine |
400mm |
Size of three-jaw chuck |
250mm |
Range of spindle speed |
150-2000rpm |
Spindle bore |
Φ82mm |
Taper of spindle bore |
Type of spindle head D-8 |
Stations of tool carrier |
4 |
Min. setting unit of motor |
(Z) long 0.001mm,
(X) cross 0.001mm |
Moving speed of post |
(Z) long 8 m/min,
(X) cross 6 m/min |
Taper of tailstock quill |
MT5 |
Max. range of tailstock quill |
150mm |
Motor power |
7.5KW |
Packing size(length ×width ×height) |
2570 mm×1400mm×1650mm |
Net weight |
3200kg |
Main features:
1. After the lead rail of the machine is treated by superaudio quenching and finish
grinding and plastic coating, it is of good rigidity and stability.
2. Independent spindle, stepless speed regulation, with lower noise and high
standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high rotate speed and sophisticated bearing, with smooth
surface.
4.The extra size diameter of the spindle bore is φ60mm while the diameter of chuck is φ250mm.
Standard configuration:
1. System:GSK928TD-L,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
Optional accessories:
1) pneumatic chuck
2) hydraulic chuck
3) pneumatic tailstock
4) hydraulic tailstock
5) enlarged bord , two gears, variable frequency speed regulation
>>
