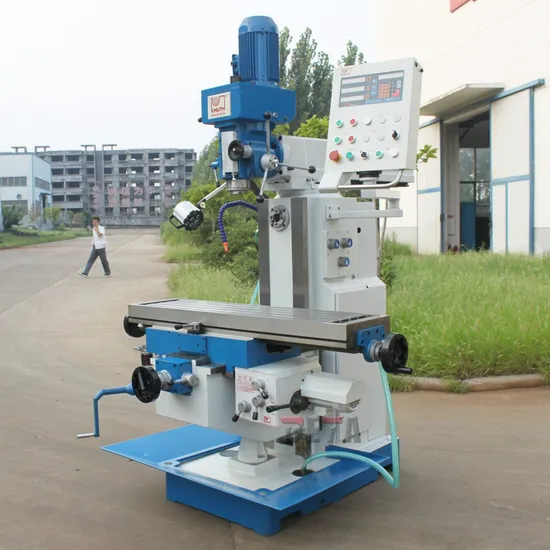

New China Factory Horizontal and Vertical Drilling Milling Machine X6332Z
Standard Accessories:
| Model | Unit | X6332Z |
| Table size | mm | 1320x320 |
| T slot /Size (Width) /Centre distance | no | 5/14/63 |
| Max. load of Table | kg | 300 |
| X axis table Longitudinal travel (manual/auto) | mm | 1000 |
| Y axis table Cross travel (manual/auto) | mm | 300 |
| Z axis table Vertical travel (manual/auto) | mm | 400 |
| Spindle taper | | ISO40 |
| spindle speed /step -- Vertical | rpm | 90-2000/8 |
| --Horizontal | rpm | 38-1310/12 |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 125 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | 10(steel) |
| Quill travel | mm | 120 |
| Swivel angle of headstock | degree | ±45º |
| Vertical spindle axis to column surface | mm | 200-780 |
| Vertical spindle nose to table surface | mm | 180-580 |
| Horizontal spindle axis to table surface | mm | 0-350 |
| Horizontal spindle axis to arm bottom | mm | 175 |
| Arm travel | mm | 400 |
| X/Y axis longitudinal/cross feed | mm / min | 20-360 / 8 steps |
| Z axis vertical/step | mm/min | 422 / 1 step |
| X/Y axis longitudinal/cross rapid speed | mm / min | 1200 |
| Z rapid traverse vertical | mm/min | 422 |
| Automatic spindle feed | | 0.08/0.15/0.25 |
| Main motor | kw | 2.2 |
| X/Y/Z axis feed motor | kw | 0.55(X/Y),0.75(Z) |
| Coolant motor | kw | 0.09 |
| Overall dimension | mm | 1710x1720x2330 |
| Packing size | mm | 1800x1820x2250 |
| N.W./G.W. | kg | 2000/2200 |
