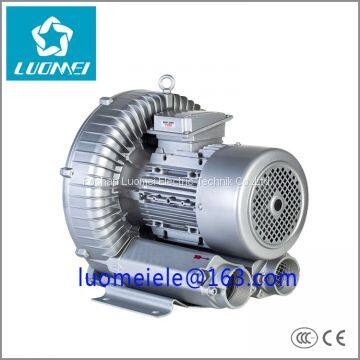

Foshan Luomei Electric Technik Co.,Ltd. is chinese blower¢rifugal fan manufacturer, located in foshan city,guangdong province, south of china, we design and produce blowers since 2002, have rich experience in production and sales, our main selling markets are Europe, North America, Oceania, Southeast Asia and the Middle East.
Main products: air blower,ring blower,side channel blower, vacuum blower,regenerative blower,vortex gas pump,turbine blower, turbo fan, industrial ventilation fan,centrifugal blower, centrifugal fan,radial compressor,radial fan,air knife, blower accessories(air filter,pressure relief,valve,silencer/muffler)
Other main model
| Model | Phase | Frequency
(Hz)
| Power
(KW)
| Voltage
(V)
| Max airflow
(m3/h)
| Max pressure
(mbar)
| Max vacuum
(mbar)
| Weight
(KG)
|
| Single Stage Ring Blower |
| 2LM210-A11 | 1 | 50 | 0.37 | 220-240 | 80 | 110 | -110 | 11 |
| 60 | 0.45 | 220-240 | 96 | 140 | -130 |
| 2LM410-A01 | 1 | 50 | 0.7 | 220-240 | 145 | 120 | -120 | 14 |
| 60 | 0.83 | 220-240 | 175 | 130 | -130 |
| 2LM510-A21 | 1 | 50 | 1.5 | 220-240 | 210 | 200 | -190 | 24 |
| 60 | 1.75 | 220-240 | 255 | 180 | -188 |
|
| 2LM210-H16 | 3 | 50 | 0.4 | 200-240/345-415 | 80 | 130 | -120 | 10 |
| 60 | 0.5 | 220-275/380-480 | 98 | 160 | -150 |
| 2LM410-H06 | 3 | 50 | 0.7 | 200-240/345-415 | 145 | 120 | -120 | 13 |
| 60 | 0.83 | 220-275/380-480 | 175 | 130 | -130 |
| 2LM510-H26 | 3 | 50 | 1.5 | 200-240/345-415 | 210 | 190 | -200 | 23 |
| 60 | 2.05 | 220-275/380-480 | 255 | 210 | -220 |
| 2LM510-H36 | 3 | 50 | 2.2 | 200-240/345-415 | 210 | 270 | -220 | 25 |
| 60 | 2.55 | 220-275/380-480 | 255 | 290 | -260 |
| 2LM710-H26 | 3 | 50 | 3.0 | 200-240/345-415 | 318 | 290 | -270 | 36 |
| 60 | 3.45 | 220-275/380-480 | 376 | 230 | -250 |
| 2LM710-H37 | 3 | 50 | 4.0 | 345-415/600-720 | 318 | 330 | -290 | 40 |
| 60 | 4.6 | 380-480/660-720 | 376 | 330 | -330 |
| 2LM810-H17 | 3 | 50 | 5.5 | 345-415/600-720 | 530 | 300 | -300 | 63 |
| 60 | 6.3 | 380-480/660-720 | 620 | 280 | -300 |
| 2LM810-H27 | 3 | 50 | 7.5 | 345-415/600-720 | 530 | 430 | -320 | 66 |
| 60 | 8.6 | 380-480/660-720 | 620 | 400 | -350 |
| 2LM910-H17 | 3 | 50 | 12.5 | 345-415/600-720 | 1050 | 270 | -280 | 93 |
| 60 | 14.5 | 380-480/660-720 | 1250 | 260 | 270 |
| Double Stage Ring Blower |
| 2LM420-H36 | 3 | 50 | 1.5 | 200-240/345-415 | 150 | 280 | -280 | 25 |
| 60 | 2.05 | 220-275/380-480 | 180 | 310 | -320 |
| 2LM420-H46 | 3 | 50 | 2.2 | 200-240/345-415 | 150 | 440 | -330 | 27 |
| 60 | 2.55 | 220-275/380-480 | 180 | 420 | -350 |
| 2LM720-H47 | 3 | 50 | 5.5 | 345-415/600-720 | 320 | 500 | -440 | 66 |
| 60 | 6.3 | 380-480/660-720 | 380 | 500 | -440 |
| 2LM820-H27 | 3 | 50 | 7.5 | 345-415/600-720 | 520 | 440 | -400 | 86 |
| 60 | 8.6 | 380-480/660-720 | 620 | 330 | -360 |
| 2LM820-H37 | 3 | 50 | 11 | 345-415/600-720 | 520 | 600 | -430 | 104 |
| 60 | 12.6 | 380-480/660-720 | 620 | 600 | -460 |
| 2LM820-H47 | 3 | 50 | 15 | 345-415/600-720 | 520 | 670 | -460 | 120 |
| 60 | 17.3 | 380-480/660-720 | 620 | 750 | -490 |
We have many other model for you choose, if you want, please contact with me ,so we can send catalog to you.
Application:
1. Pneumatic conveying systems.
2. Vacuum lifting systems.
3. Fish and shrimp pond oxygen supply.
4. Wastewater treatment and electroplating pool aeration.
5. Packing and printing machines.
6. Bottle drying system with air knife.
7. Dental vacuum suction machine and medical equipments.
8. Textile machines.
9. Smoke extraction in industry or kitchen.
10. Food processing drying .
11. Vegetable washing machine.
12. Industry vacuum clenaer.
13. Soil remediation
>>
