6ton 7ton Bucket Excavator with Magnetic and Electric Sucker Digger

Product Description

QUANZHOU JINGLI ENGINEERING MACHINERY CO. LTD.
jg-excavator.en.made-in-china.com
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.

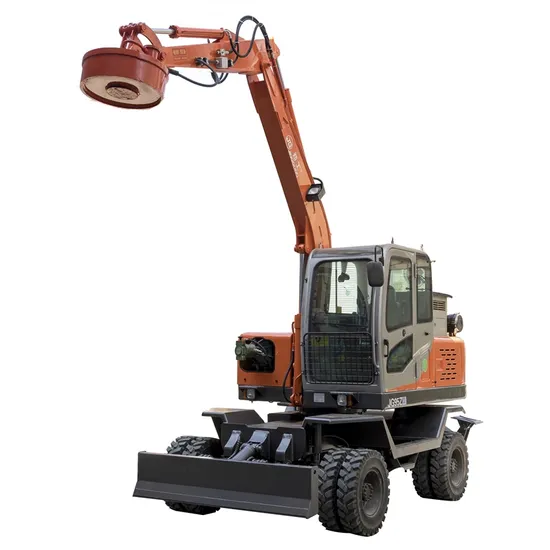

2020 Bucket excavator with magnetic and electric sucker

The magnetic power and electric sucker will generate magnetic force when it is energized, which directly attracts the workpiece.This sucker mainly generates a magnetic field through a power source. With a magnetic field, it can sense, position, and drive. When energized, its magnetic field will expand. The action changes the magnetic field, and the direction of movement is recognized to generate electromagnetic thrust.

SPECIFICATIONS
RANGE OF OPERATION			Boom length				3300mm
			Arm length				1850mm
			Diameter of eletric sucker				800mm
			Maximum suction weight				500kg
			Maximum Digging Reach				6240mm
			Maximum Digging Depth				3200mm
			Maximum Digging Force				45KN
			Maximum Digging Height				6970mm
			Maximum Dumping Height				4950mm
			Back-end radius of gyration				1980mm
DIMENSION			(Length*width*height) travel position				5800*2100*2850mm
			Wheel base				2400mm
			Track(Front/rear)				1850mm/1750mm
			Ground clearance of counterweight				1160mm
			Min ground clearance				200mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				7000kg
			Engine model				YUCHAI 4FA65
			Rated Power				48KW
			Rated Speed				2200r/min
			Hydraulic system working pressure				20Mpa
			Hydraulic system flow				120L/min
			Metering gear pump				2*28ml/r
			Max Hauling force				45KN
			Walking speed				25km/h
			Grade Climbing ability				58%/30°
			Tyre model				825.16
			Volume Of Bucket				0.2-0.3m3
			Revolution Overdrive Pressure				16Mpa
			Full circle swinging time				5.5s
			Fqt Fuel Quantity				≥4L/h
			Capacity Of The Fuel Tank				110L
			Hydraulic Tank Capacity				110L

Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.

---
