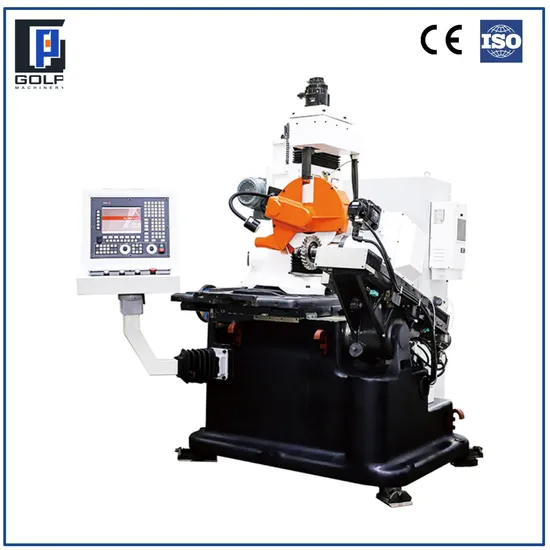

1-8 Module Gear Profile Grinding Machine with CNC Shaving Cutter for Machining Dia 25-250mm

Product Description

1.This machine enjoys CNC remanufacturing on the basis of original YK7125 mechanical gear grinding machine and has characteristics of CNC feed , high precision CNC indexing , CNC grinding wheel dressing and CNC generation feed .
2.The machine tool is equipped with automatic programming software with which the machine tool can realize automatic programming . The machine tool with automatic compensation realized by system with completion of grinding wheel dressing can grind any equal or unequal workpiece .
3.The machine tool is applicable to grind Class - A gear shaving cutter , Class - AA slotting cutter and standard gear with Grade -3 precision ( GB / T 10095.1-2008).
4.YK7125A/YK7125B is a gear grinding machine with CNC gear shaving cutter enjoying upright CNC feed , high precision CNC indexing , CNC grinding wheel dressing and CNC generation feed .
5.The machine tool realizes the grinding of involute gear profile YK7125A/YK71258 by interpolation motion of high precision CNC index head ( U - axie ) and generation slipway ( X - axle ), so as to cancel traditional index plate and basic circle plate . The machine tool can grind any equal or unequal workpiece by high precision CNC index head instead of index plate . Grinding wheel dressing is realized by linkage of upright CNC feed ( Z - axle ) and CNC grinding wheel dressing slipway ( Y - axle ). Automatic compensation is realized by system with completion of grinding wheel dressing .
6.The programming of the machine tool is completed by inputting corresponding parameters of processing part in dialog box provided by computer automatic programming software , and machine program automatically generated by which is sent to CNC system through RS232interface. The corresponding convexity / concave gear profile can be formed by filling in the corresponding convexity / concave quantity in dialog box of additional gear profile as per elongation .
7.Upright rotation ( helix angle ) and excursion of gear width from slipway of the machine tool are realized by manual operation .

Model of machine tools	YK7125A
Machining diameter (mm)	25-250
Module (mm)	1-8
Helix angle	±45°
Diameter of grinding wheel (mm)	300-400
Number of gears	random

Δ Due to the continuous progress of technology, this content is for reference only, in case of any change without further notice.the technical documents signed by both parties shall prevail.
You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
