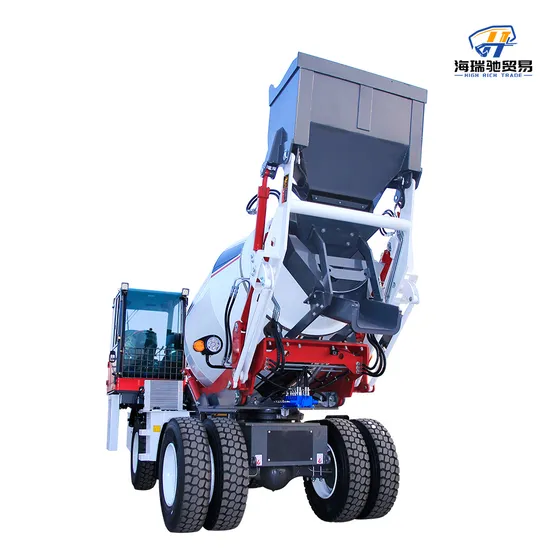

Hot-Selling Highrich 4000L Volumetric 4 Wheel Mobile Self-Loading Concrete Mixer Truck

Product Description

Product Description
The self-loading concrete mixer is a device that combines the functions of an existing concrete transport truck and a mixing station, and can automatically feed, measure, mix and discharge concrete mixtures. Stirring can be carried out while feeding, shortening the stirring time and increasing efficiency. The self-loading concrete mixer comes with a powerful engine and four-wheel steering that provides high traction, helping the machine work in very soft clay site conditions. It is very convenient to load cement, aggregate, stone and other materials. Raw materials are scattered around the construction site, and with a self-loading mixer, you will never have to worry about the transportation of raw materials.
Efficient self-loading concrete mixers require only one operator to drive, load and mix raw materials on the move. With higher work efficiency and higher mixing effect. At the same time, labor costs and working hours are greatly reduced. A self-loading concrete mixer can bring you huge benefits. Compared with traditional mobile concrete mixer trucks, self-loading mobile cement mixer trucks are more flexible.
A. The self-mixing concrete transport truck can automatically load, measure, mix and unload materials.
B. The aggregates are weighed during the loading process, and the weighing accuracy is within 3%.
C. Only one operator is required to drive, load and mix raw materials during the movement.
D. Have an independent water supply system.
E. The mixer truck body is of sufficient quality, with four-wheel drive, no rollover when climbing, the pipeline is protected, the temperature is adapted to the fine grain of the tank, the alloy is very durable, the body has dual tires, and it can bear loads in a vacuum.
F. The work environment is not limited and the location is not limited. It can be used with confidence in cities, rural areas, mountainous areas, and plateaus. The production quality of regular manufacturers is guaranteed, and you can easily hang a license plate and hit the road immediately.
G. The mixer truck has its own batching function, and the electronic scale and batching system cooperate with each other to strictly control the weight and proportion of raw materials.

Overall Parameter
Model	HR4000L
Dimension (L×W×H)	6700*2640*4220(Lifting Arm) 7900*2640*3120(Drop Arm)
Weight	8600 kg
Performance
Mixing Drum Capacity	Drum Capacity 4000l,Concrete Output: 3m³ Per Batch
Production Speed	Production speed: 7tanks/h
Traveling Speed	Low Speed: 0-25km/hour / High Speed: 0-40km/hour
Drum Rotation	Horizontal rotation 270°
Transmission Type	4*4
Water Tank Capacity	1000L
Diesel Tank Capacity	200L
Hydraulic Oil Tank Capacity	200L
Gearbox	280 separated type
Drive axle	2.5T wheel side decelerationbridge
Tires	16/70-R22.5 double tires
Bucket capacity(m3)	0.65
Mixing capacity(m3)	≥2.8
Reduction ratio	1:28
Rotating speed(laps/minute)	≥ 15 laps/minute
Reducer	Made in China
Gradeabiliy	30°
Engine
Model	Yuchai 4105 supercharged
Manufacturer	YUCHAI
Rated Power	85KW
Emission standards	Euro II
