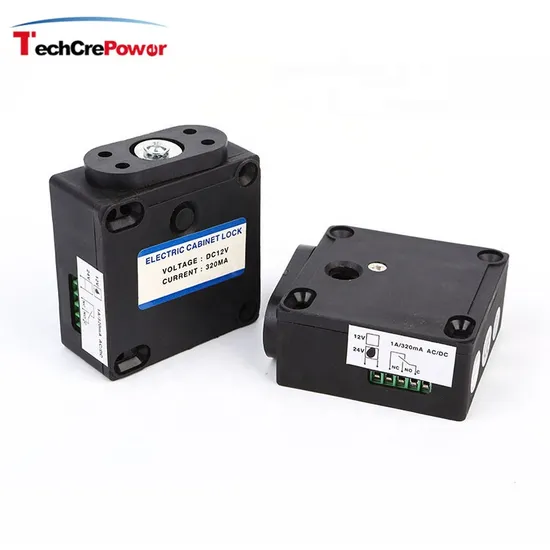

Electronically hidden secure electric cabinet lock for public cloak room
Product Description The CL-301 Electric Cabinet Lock is designed to electronically secure cabinets and drawers which is very convenient for installation.
• Equipment Design,Stable Performance.
• Special Design,Simple Installation.
| Product Parameter | Description |
| CL-301-12V CL-301-24V |
| Size | 55Lx55Wx25H(mm) |
| Pin length | 18mm |
| Pin diameter | 7mm |
| Voltage | CL-301-12V: 12VDC CL-301-24V: 24V |
| Current | CL-301-12V: 320mA CL-301-12V: 160mA |
| Suitable for | File cabinet, storage cabinet public cloak room |
| Weight | 0.12kg |
| CL-301-12V-S CL-301-24V-S |
| Size | 55Lx55Wx25H(mm) |
| Pin length | 18mm |
| Pin diameter | 7mm |
| Voltage | CL-301-12V-S: 12VDC CL-301-24V-S: 24V |
| Current | CL-301-12V-S: 320mA CL-301-24V-S: 160mA |
| Signal output | NO/NC/COM |
| Suitable for | File cabinet, storage cabinet public cloak room |
| Weight | 0.12kg |
