Wi-Fi 6 Bluetooth 5.2 Mediatek processor mini PC for interactive digital board in classrooms

US$99.00-137.00 1 Piece (MOQ)

Basic Info.

Model NO.

DS-I38128

Operating System

Windows 10

Ports

HDMI

Processor

Intel Core i3

RAM Capacity

4GB

Storage Type

SSD

Wi-Fi Connectivity

Bluetooth 5.0

CPU Model

7th generation Intel® CoreTM i5-7500 processor

Core and frequency

Core NO:4 Thread:4 Basic frequency 3.50GHz

RAM

DDR4-4G 1 x SODIMMs DDR4

Front Output

DP-Max.3840 x 1920, HDMI-4K,

Hard Disk

128G SSD

Network card - Dual frequency 5G

2.4G&5G Gigabit LAN controller

extension port

Mini-PCLe(Built-in)

Power requirement

DC-IN 12-19V

Physical size

180.8 x 195.2 x 42.5 mm

Heat Dissipation

Copper tube with double ball fan for side air cool

Surroundings

0 - 40 celcus

Power on automatically

Support, hardware control, power on, automatic boo

material

iron shell

I/O port

DP, HDMI, USB,AUDIO,

Connector

80pin

Transport Package

in Carton

Specification

30MM, 42MM

Trademark

OEM

Origin

Guangdong Shenzhen

HS Code

852850

Production Capacity

200PCS/Day

Packaging & Delivery

Package Size

27.00cm * 19.00cm * 8.00cm

Package Gross Weight

1.000kg

Product Description

Wi-Fi 6 Bluetooth 5.2 Mediatek processor mini PC for interactive digital board in classrooms
Product Description i3, i5, i7 processor available
RAM4G/8G/16G, ssd/eMMC: 128G/256G/512G.
Generation: 4th, 5th, 6th, 7th, 8th, 9th, 11th available, pls constact us to customize
Windows 10, Windows 11 etc Optional
Input/output connector:HDMI, DP, USB3.0, USB2.O, RJ232,
International standard 80pin connector
OPS 30mm and 42mm standard for interactive flat panels.
WIFI &Bluetooth
Warranty 2 years
CE ROHS FCC include
Window OS Official register code optional

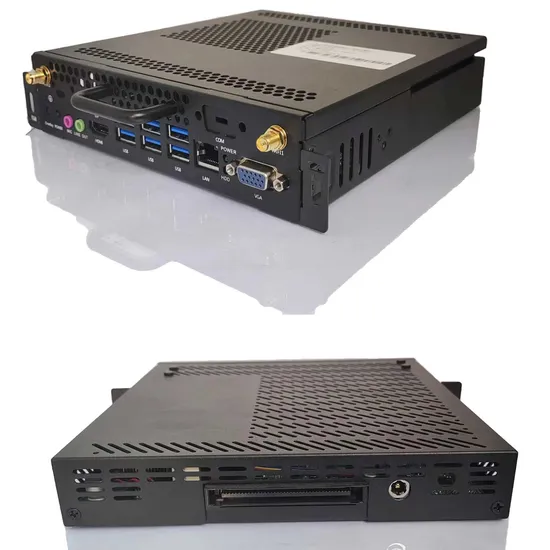

Detailed Photos
Product Parameters

Processor	System chipset	intel® H110 Express
	CPU Model	7th generation Intel® CoreTM i5-7500 processor
	Core and frequency	Core NO:4 Thread:4 Basic frequency 3.50GHz

RAM	Technology	1 x SODIMMs DDR4
	RAM	DDR4-4G

Display	Front Output	DP-Max.3840 x 1920
		HDMI-Max.3840 x 1920
	JAE port	HDMI-Max.3840 x 1920

Processor Graphics	Model	Intel® HD Graphics 530
	Maximum memory	64G
	Frequency	350 MHz
	Maximum dynamic frequency	1.05 GHz

Hard Disk	SSD	128G

Network card - Dual frequency 5G	Interface	PCIE
	Support	2.4G&5G
		Gigabit LAN controller

I/O port	JAE Connector	1(JAE TX25 80-PIN)
	DP	DP-Max.3840 x 1920
	HDMI	HDMI-Max.3840 x 1920
	LAN	1(RJ45.)
	USB	3 x USB3.0 & 3 x USB2.0
	Audio	1 x AUDIO OUT + 1 x MIN IN
	Port	1 x COM (RS-232 op

extension port	Mini-PCLe(Built-in)	1 x Mini-Pcle
		1 x Msata

Power requirement	Input voltage	DC-IN 12-19V

Physical characteristics	Size	180.8 x 195.2 x 42.5 mm
	Sheel material	Iron

Heat Dissipation	method	Copper tube with double ball fan for side air cooling, temperature control

Surroundings	Temp	0 - 40ºC
	Relative humidity	95% @40ºC

Software development kit	operating system	Windows®8.1 Windows®10 linux
	Power on automatically	Support, hardware control, power on, automatic boot, dial switch

Certifications
Installation Instructions
