High Precision CNC Plate Drilling Machine for Metal Steel Drill Tapping

Product Description

Product Description

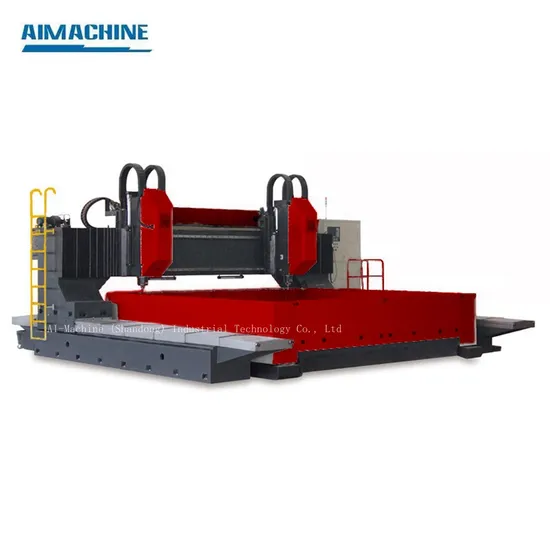

This machine is a gantry moving CNC drilling and milling machine, which can be clamped with a hard alloy high-pressure internal cooling drill bit and can also be drilled with a high-speed steel twist drill bit externally cooled. It is mainly used for drilling, tapping and milling of flanges, heat exchangers and tube sheet parts. The machining process is cnc controlled, with high efficiency, high precision, convenient programming and simple operation.
The machine is mainly composed of bed base and longitudinal sliding table, gantry and transverse sliding table, vertical feed unit and drilling and milling power head, tool magazine, automatic cutting device system, high pressure internal cooling system, external cooling system, automatic chip removal System, automatic lubrication system, pneumatic system, numerical control system, electrical system.

Product Parameters

Machine type	Gantry moving cnc drilling and milling
Maximum processing size	2000X2000mm
Maximum processing thickness	250mm
Drilling power head	CNC slide type servo control power head
Quantity of power head	1
Maximum drilling diameter	φ60mm
Maximum tapping diameter	M30
Maximum milling head diameter	φ120mm
Main motor	22KW
Main spindle rotation speed	6000r/min
Z axis stroke	800mm
Driven of X axis	Linear guide guide; AC servo motor and ball screw
Maximum speed movement in X axis	10m/min
Maximum stroke of X axis	2000mm
Motor power of X axis	2x2.3 Kw
Power head transverse (Y-axis) drive mode	Linear rolling guide; AC servo motor, ball screw drive
Maximum moving speed of Y axis	10m/min
Lubrication system	Automatic lubrication, operating pressure 2MPA, can be quantitatively adjusted regularly
Quantity of cnc axis	4 positioning axes + 1 servo spindle
Chip removal function	The height of the drill bits can be set on the operation software. When drilling to this height, the drill bit will be quickly lifted to the top of the workpiece to remove chips, and then fast-forward to the drilling surface and automatically converted to working.
Automatically converting CAD/CAM graphics into processing programs	Automatic continuous drilling can be realized simply by converting the correct CAD design drawing into a machining program.
Pulse hand wheel
Hole position memory function (power-off memory hole position) and drilling pause function.
Manual hole position jumping function	cancel the current drilling manually, and automatically carry out the drilling of the next hole position
Total power	40Kw
Machine weight	20t
Machine dimension	5800×3800×4000mm
