Agricultural Machinery Low Breakage Ly-20000 Peanut Shelling Machine Peanut Sheller

Product Description

LY-20000 Peanut Shelling Machine
Working Principle
Peanut will be feeding by people.
The peanut goes through the de-stoner. The stone will be removed there .
Then the peanut is taken to the sieves ,cause the friction of rotor and fence,the peanut kernel and shell will be separate and the peanut kernel and the peanut shell will drop through the fence,pass by the air tube and wind will blow most of the peanut shell out of the machine ; then the peanut kernel and some of the small peanut still with shell will go to the gravity table ,the peanut kernel will go to the upside then go to the final outlet,the small peanut with shell will go to the downside and go out to the elevator for the second shelling.
Advantages:
1.small and convenient
2.Light weight which is easy to move
3.Simple installation
4.High capacity
5.Low cost
6.Good shelling result
Product Parameters

Machine Name	LY-10000 Peanut Shelling Machine	LY-20000 Peanut Shelling Machine
Overall Size(mm)	Shelling machine:2300*1500*2500 De-stoner:2100*1200*1900	Shelling machine:2500*1600*2500 De-stoner:2100*1200*1900
Weight	1350kg	2000kg
Power	31KW	41KW
Capacity	1-2t/h	3-4t/h

Machine Picture

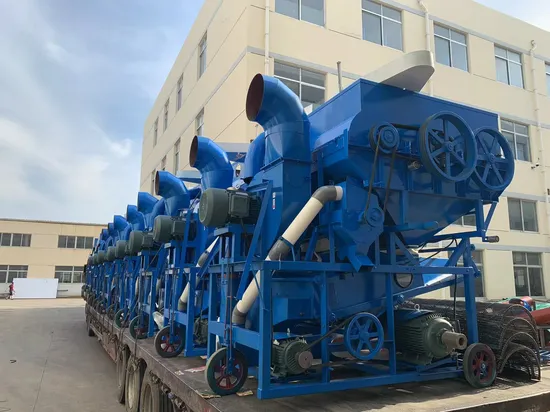

Machine Loading Picture
Company Warehouse
We also have the peanut butter machine

---
