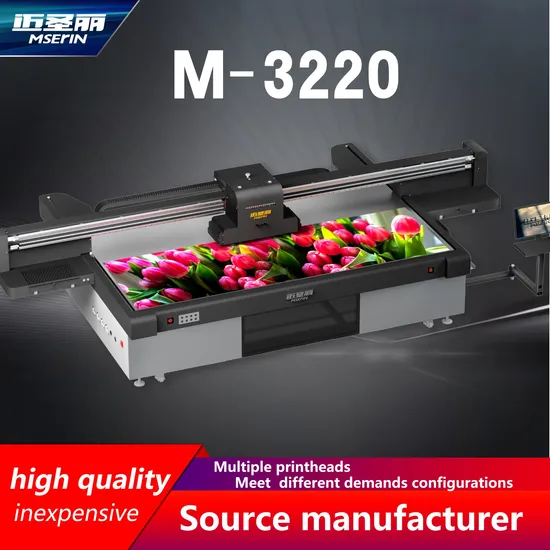

MSERIN 3220 is a true industrial UV flatbed printer that's versatile and capable of printing both flat substrates and round materials directly. With VDT(variable dots technology), it covers a drop volume from 3-12pl, making it possible to print sophisticated image with great color gradiant. MSERIN 3220 UV printer also boasts negative pressure system for both white and color ink, allowing for simple and worry-free maintenance.
| Model | M-3220 UV flatbed printer |
| Appearance | Black grey or Medium grey |
| Ink | UV Ink:CMYK,LC,LM,White,varnish |
| Printing Speed | 720*600dpi(4PASS) | 26sq.m./h |
| 720*900dpi(6PASS) | 20sq.m./h |
| 720*1200dpi(8PASS) | 15sq.m./h |
| Print Size | 3260mm*2060mm |
| Print Thickness | 0.1mm-175mm(or customized) |
| Curing System | UV LED Lamp |
| Image Format | TIFF/JPG/EPS/PDF/BMP |
| RPI Sofeware | FlexiPRINT |
| Material Type | All kind of advertising materials,decoration related series materials,metal plate,glass,ceramics,wood board,textile,plastic,mobile phone case,acrylic,etc |
| Power Supply | AC220v 50HZ±10% |
| Temperature | 20-35ºC/68-95°F |
| Humidity | 40-75% |
| Power | 3500/5500w |
| Equipment Size | L/W/H:4470mm*2107mm*1383mm |
| Package Size | L/W/H:4621mm*2260mm*1620mm |
| Data Transmission | TCP/IP network interface |
| Net Weight | 1000kg/1350kg |
